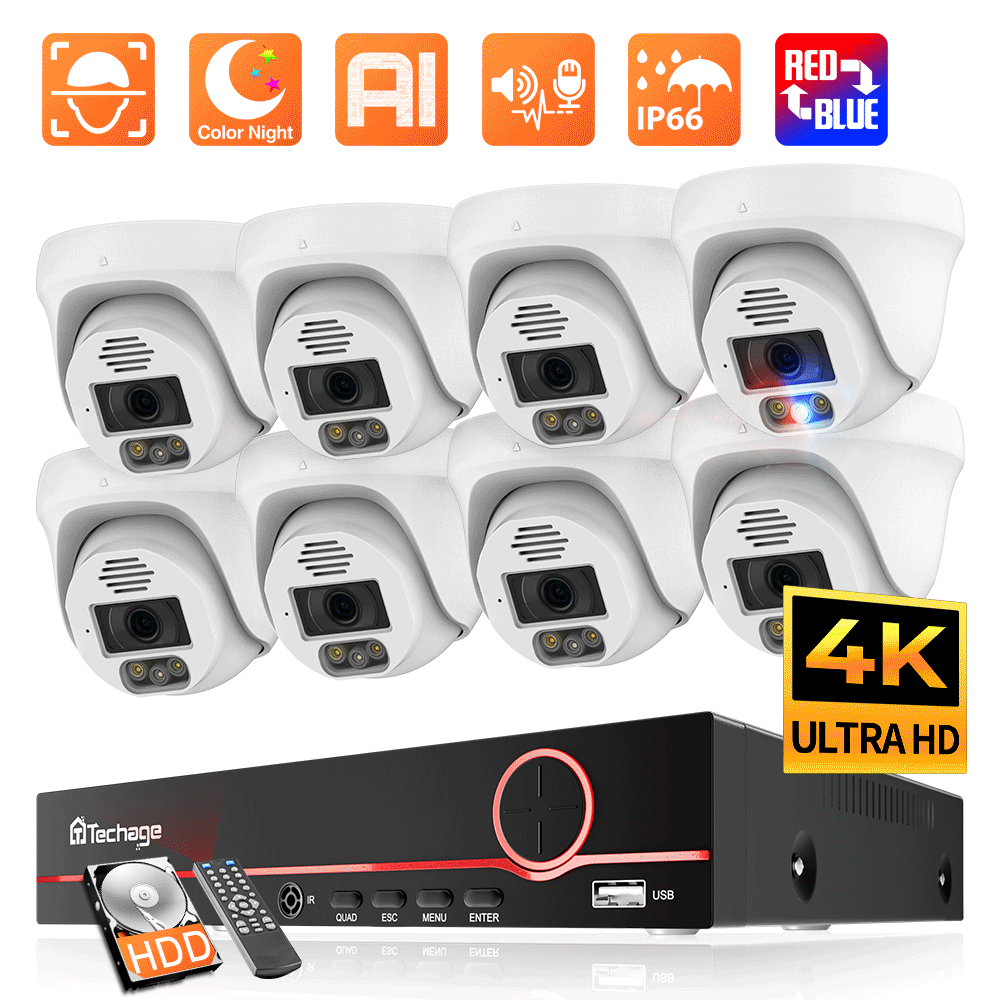

Package Including:
1 x H.265 8CH 4K POE NVR Built In 8 POE Port
2/4/6/8 x 5MP/4K POE IP Cameras With Two-Way Audio
2/4/6/8 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x User Manual
2 x Warning Sticker (gift)
2/4/6/8 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
(NO HDD / 1TB/ 2TB/ 3TB/4TB HDD for Optional)
Support 5MP/4K HD Display
Show Higher-Quality Images, With Better Experience.
4K Resolution Display and Encode Setting
Notice: Our 100% 4K 8MP camera system will get best display effect with 4K display monitor
AI Humen Detection & Email Alert & Alarm Sound
when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Note: Only when the app is opened will received the alarm
9 Kinds Alarm Sound for Option ( Only Support English Sound )
When Someone Breaks Into Shooting Area,
The Camera Will Make Alarm Sound Alarm Messages Will Be Pushed To Your Phone App.
Intelligent Identification Alarm
Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.
Face Record/Face Detection/Face Playback
Record Every Face That Appears On The Lens, Without Missing Any Details.
Real-Time Two-Way Audio Communication
Camera Has Built In Microphone And Speaker, You can Talk Remotely
Smart IR-Cut Full Color Night Vision
Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision, Monitor moving objects, automatically illuminate and Red Blue Flashing Light Alert (support turn off set). This is an impressive little weapon against crime .
Save Your HDD Storage Space And Reduce Your Purchase Cost.
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.
POE Advantage, Why Choose POE ?
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch
Max Support 100 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.
Our NVR Supports up to 14TB HDD
Install and Connect It
It Can Be Quickly And Easily Setup By Anyone,
Instantly See Live Video Using Your Computer, Tablet, Or Phone From Anywhere.
Don't Need Extra Power Cables Or Adapters Or Switch.
It Can be Extended to 16pcs 5MP/8MP POE Camera if use 8CH POE Switch Together.
If you need 8CH POE Switch, please click
IP66 Waterproof Security Camera
Our Camera All Can Suit For Both Outdoor And Indoor Usage.
Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
Remote Access Anytime, Anywhere
Based On P2P (Peer To Peer) Technology, Support Plug-And-Play Installation.
Access The Ip Camera Through Its Web Interface Via Internet Explorer,
Also Comes With a Free Smartphone App (Android & Iphone) For Remotely View From Anywhere.
Support IOS And Android Device Access. Scan QR-Code To Login. Download Free App In Apple App Store / Google Play.
Model
|
Model Type:
|
POE Camera
|
Model No.
|
6708K-8-DM27SP-AI-80N
|
System
|
System structure
|
Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog
|
Video
|
Sensor
|
8 million black light CMOS sensor SC8239; colour 0.0001Lux@F1.2 , black and white 0.0001Lux@F1.2
|
Video processing
|
H.265AI encoding, double stream,AVI format;
|
Image output
|
main stream: 8M 3840*2160@15fps;5M 2880*1616@25fps;4M 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps;Substream:
800*448@25fps
|
Shutter
|
1/50(1/60)to 1/10000 of a second
|
Noise reduction
|
2 d / 3 d noise reduction
|
Wide dynamic
|
Digital-wide dynamic
|
Lens
|
3.6mm hd lens
|
Night vision
|
IR-CUT,Infrared night vision, color filter automatically switch
|
light distance
|
Infrared 15m ,white light 10m(2 infrared light,2 white light)
|
Audio
|
Audio processing
|
G.711A,two way audio
|
Audio interface
|
-33dB high sensitive mic, 8 Ω 1W horn
|
Network
|
Network interface
|
One RJ45 Ethernet port,10/100M auto-sensing
|
Alarm
|
|
Human detection, Motion detection, Smart AI alarm, Face detection
|
|
Red and blue alarm warning light
|
|
APP push, voice alarm, video recording, capture pictures
|
Video
|
Video mode
|
Timing video, event video
|
Playback mode
|
Event playback, time playback
|
Other
|
Reliability
|
Comprehensive lightning protection,7*24 hours 65℃ high temperature test is stable and reliable
|
ONVIF
|
support
|
Cell phone monitoring
|
Mobile phone monitoring (iOS, Android)
|
power
|
POE48V/DC12V
|
Material
|
Metal Housing
|
Work environment
|
Temperature
|
-20℃ to +55℃
|
Humidity
|
30% to 80% RH
|
System
|
Main processor
|
Hi3536E
|
Operating System
|
Embedded Linux
|
System resources
|
Simultaneous multi-channel real-time
recording, playback, network operation,
USB backup
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation
interface, support mouse operation
|
Preview
|
1/2/4/6/8/9/16
|
Video
|
Video input (IP)
|
16*4K(Access bandwidth 72Mbps)
|
Video compression
|
H.265AI/H.265+(compatible H.265/H.264)
|
Display quality
|
Max:4K
|
Playback quality
|
4K/5M/4M/3M/1080P
|
VR
|
Unsupport
|
human shape / Face
|
Support(depend on camera)
|
Audio
|
Audio compression
|
G.711A
|
Intercom
|
unsupport
|
Record
&
playback
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
Localpayback(real-time+ Un
real-time)
|
4K(1*real-time)/5M(1+1)/4M(2+1)/
3M(3+1)/1080P(5+1)
|
Search mode
|
Search by Time/Calendar/Event/Channel/Face
|
Record storage
|
HDD、Network
|
Backup mode
|
Network backup, USB hard disk, USB burner,
SATA burner
|
External
interface
|
Video output
|
1ch VGA,1ch HDMI HD output
|
Audio I/O
|
0/1(3.5MM audio output)
|
Alarm I/O
|
0/0
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
USB interface
|
2*USB2.0 ports(one USB extension
interface is reserved)
|
HDD
|
1 SATA(Up to 14TB for each disk)
|
ESATA
|
No
|
Serial interface
|
No
|
Other
|
ONVIF
|
Support
|
Power supply
|
12V/2A
|
Power Consumption
|
<10W(Without HDD)
|
Work environment
|
Temperature:0℃ -55℃ ,
Humidity:10%-90%RH , Atm:86kpa-106kp
|
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
