Tinosec H.265 8CH POE NVR 4K 8MP 5MP 4MP 1080P Power Over Ethernet IP NVR XM Digital Network Video Recorder

Tinosec H.265 8CH POE NVR 4K 8MP 5MP 4MP 1080P Power Over Ethernet IP NVR XM Digital Network Video Recorder

Item NO.: XM-6708KR
Inquiry

Detail

  • Product NameTinosec H.265 8CH POE NVR 4K 8MP 5MP 4MP 1080P Power Over Ethernet IP NVR XM Digital Network Video Recorder
  • Item NO.XM-6708KR
  • Weight2.0000 kg = 4.4092 lb = 70.5479 oz
  • CategoryPoE Camera System> PoE IP NVR
  • BrandTinosec
  • Creation Time2024-01-12
  • *16CH 2MP 3MP / 16CH 5MP POE NVR / 8CH 4K Playback : 8CH 2MP 3MP / 4CH 5MP
  • *Plug&Play, child's play
  • * Free PC software for NVR
  • *Support Quad Display & Quad Playback
  • *Support search, playback and backup by event
  • *Motion Detection Recording, Email Notification
  • *Support 2 SATA HDD 8TB Maximum(not included)
  • *On-vif compliant, working with third-party IP cameras
  • *DC48V POE Power supports 16Pcs 80-100meters RJ45Cable
  • *Xmeye P2P cloud service, Probably the best remote view smart phone app in the world
  • *Language Available:Dutch, English, Chinese, French, German, Italian, Arabic, Portuguese, Russian,Spanish, Thai.
16CH H.265 NVR Features ( with Audio in and Audio out )
Features:
*16CH 2MP 3MP / 16CH 5MP POE NVR / 8CH 4K Playback : 8CH 2MP 3MP / 4CH 5MP
*Plug&Play, child's play
* Free PC software for NVR
*Support Quad Display & Quad Playback
*Support search, playback and backup by event
*Motion Detection Recording, Email Notification
*Support 2 SATA HDD 8TB Maximum(not included)
*On-vif compliant, working with third-party IP cameras
*DC48V POE Power supports 16Pcs 80-100meters RJ45Cable
*Xmeye P2P cloud service, Probably the best remote view smart phone app in the world
*Language Available:Dutch, English, Chinese, French, German, Italian, Arabic, Portuguese, Russian,Spanish, Thai.

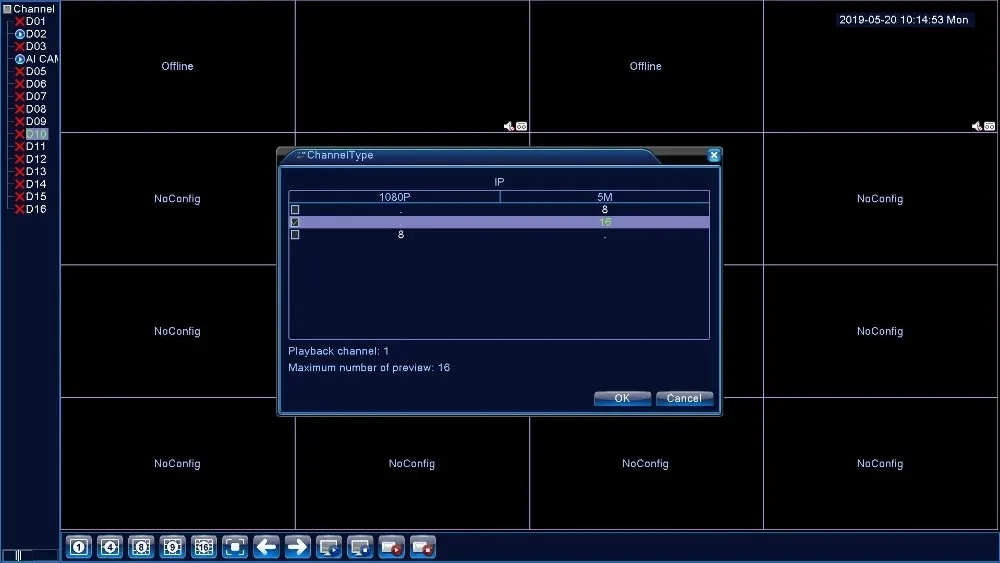

Support be extended to 16CH NVR
Our 8CH POE NVR Can be Extended to 16pcs POE Camera if use 8CH POE Switch Together
Support Ultra HD 4K Display

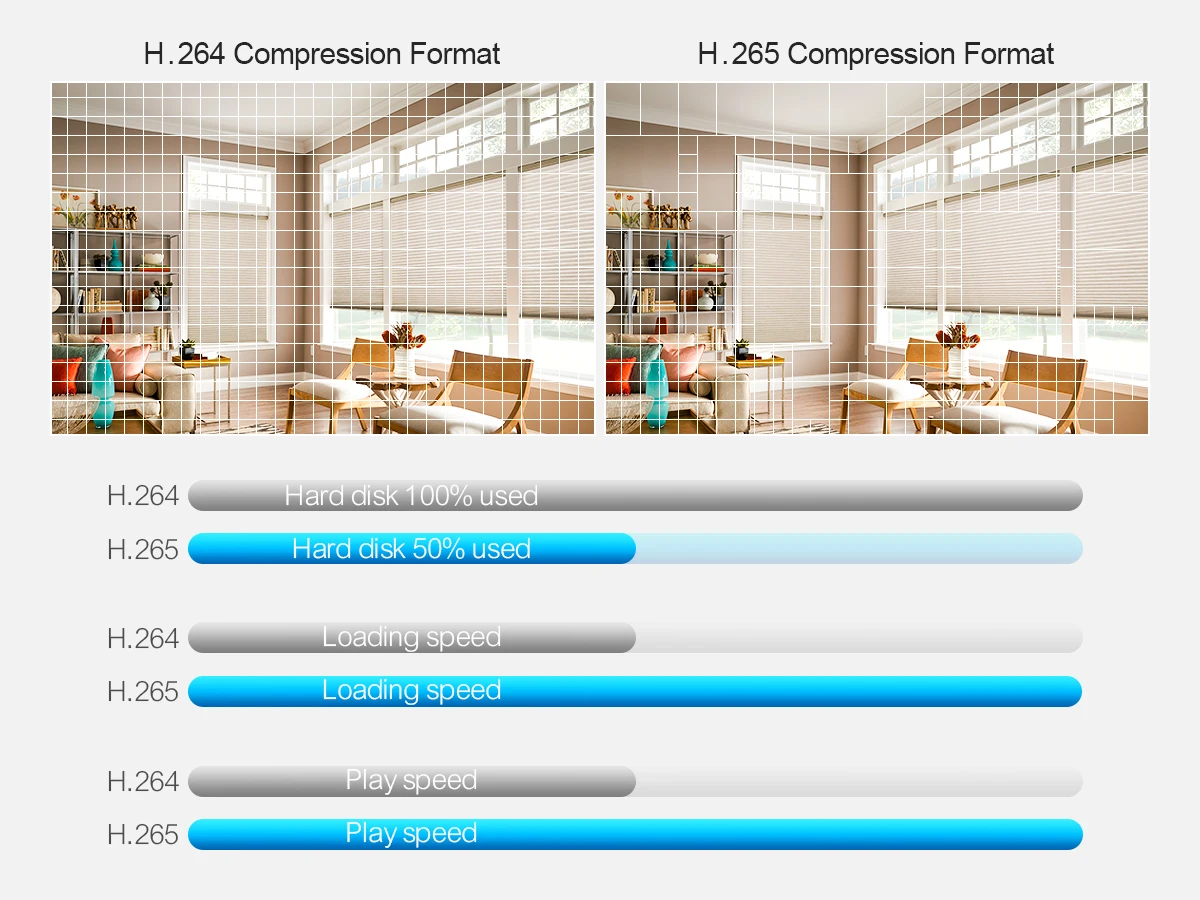

H.265 POE NVR
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.

Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

H.265 only need a lower bandwidth,speed loading faster,play video more smoothly

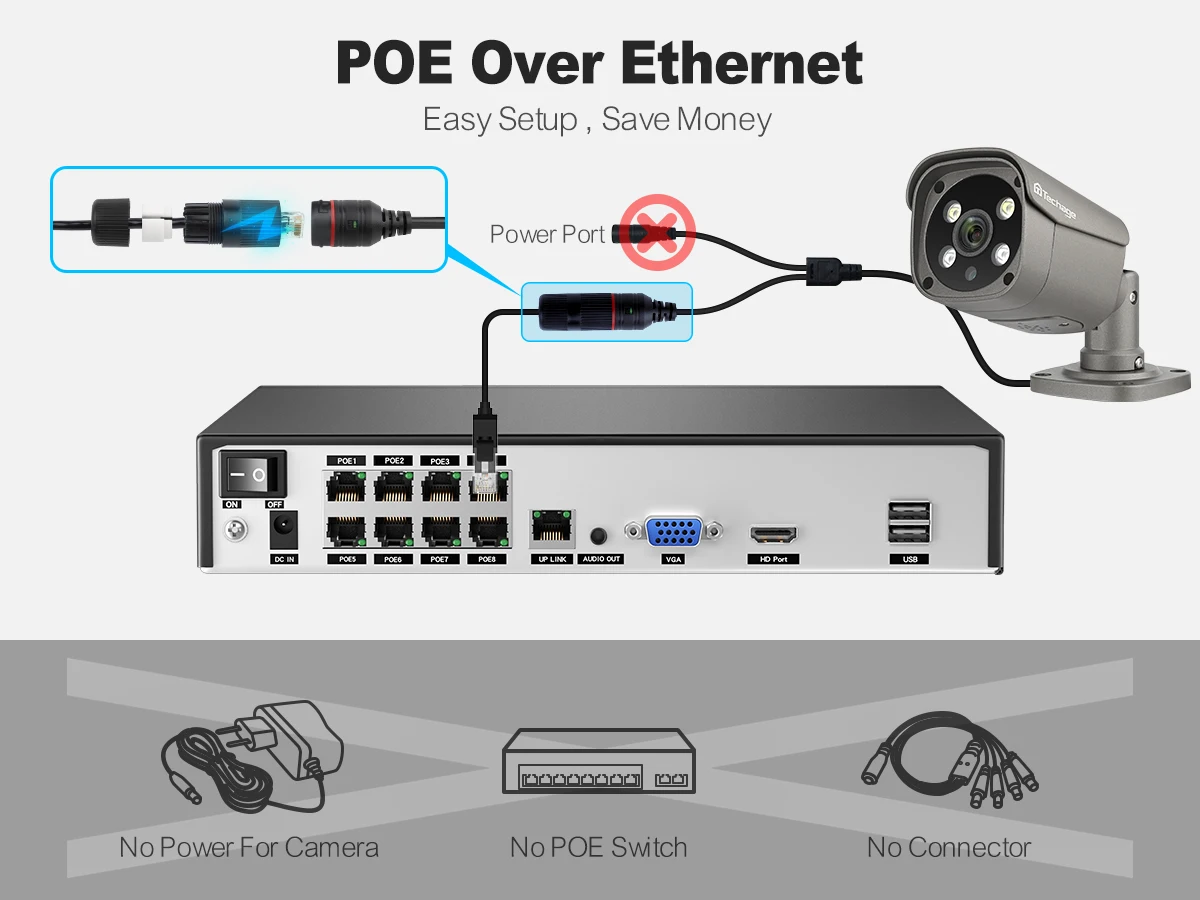

POE Advantage, Why Choose POE ?
Don't need extra power cables or adapters or switch.Plug And Play and easy setup.

Save Money and Convenient, POE NVR = NVR + POE Switch
Tinosec 48V POE CCTV System

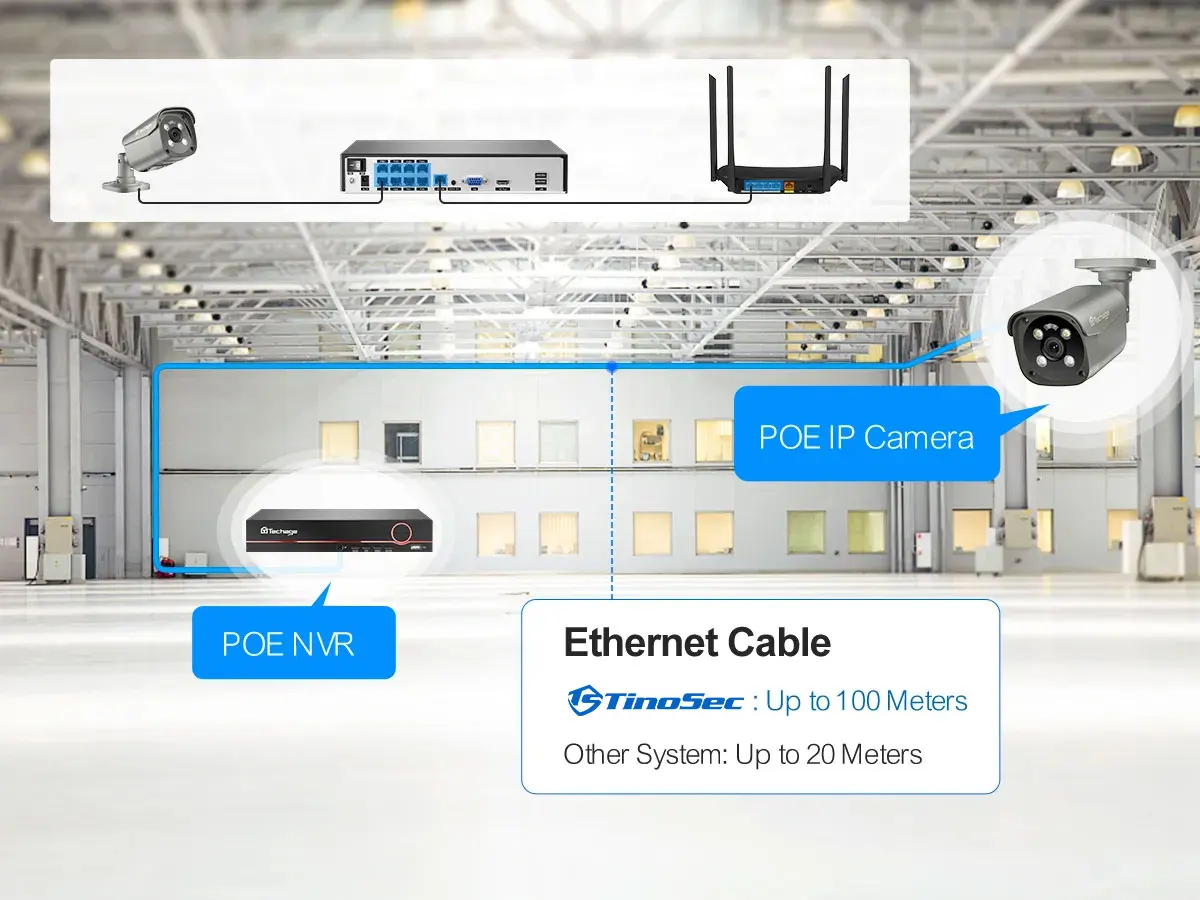

Max support 100 meters transmission distance
Install and Connect it
It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.
Don't need extra power cables or adapters or switch.
Advanced Human/Motion Detection and E-mail Alert
When motion/human is detected the NVR will save the footage into hard disk without missing any important events. You can even
ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.NVR will send
you mail automatically if there is any motion detected.
Video With Smart Playback
Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos

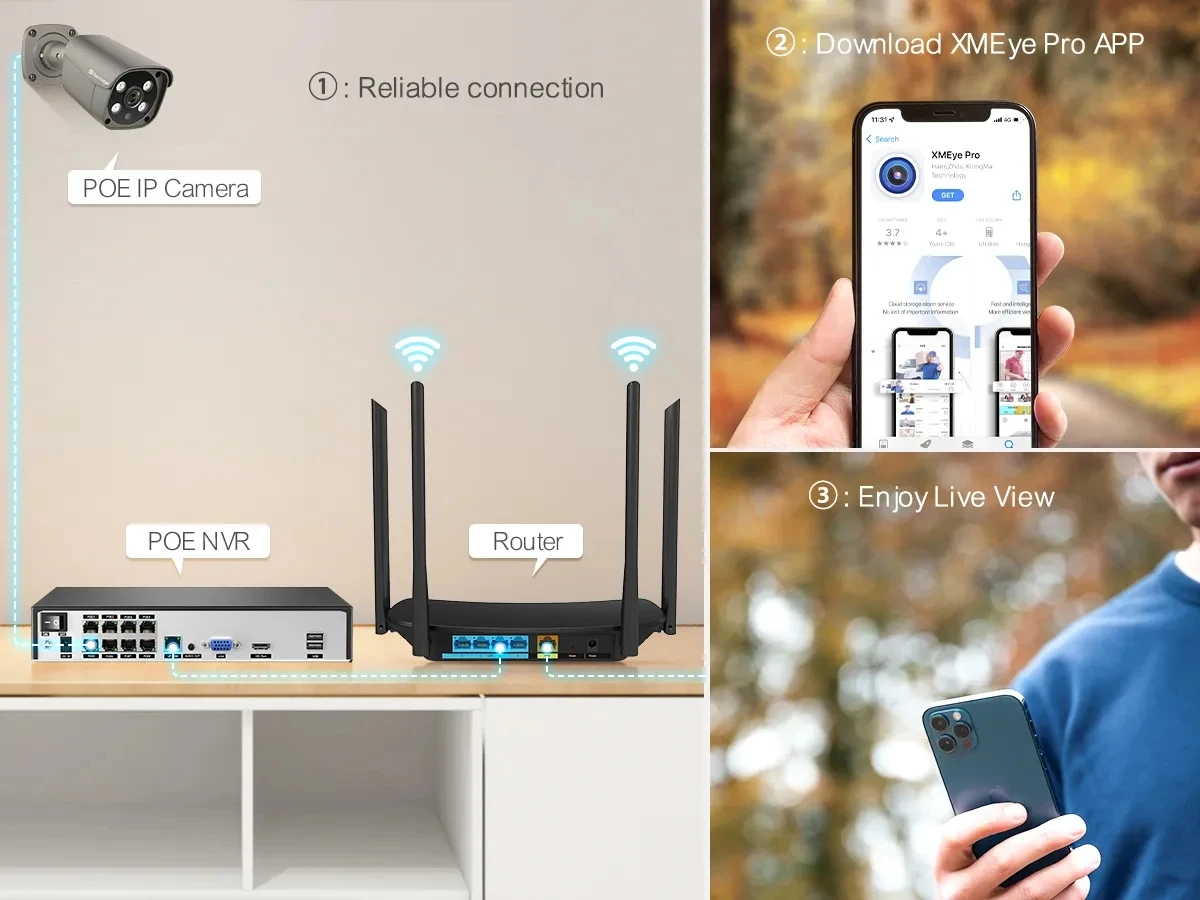

Remote Access Anytime, Anywhere
Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.

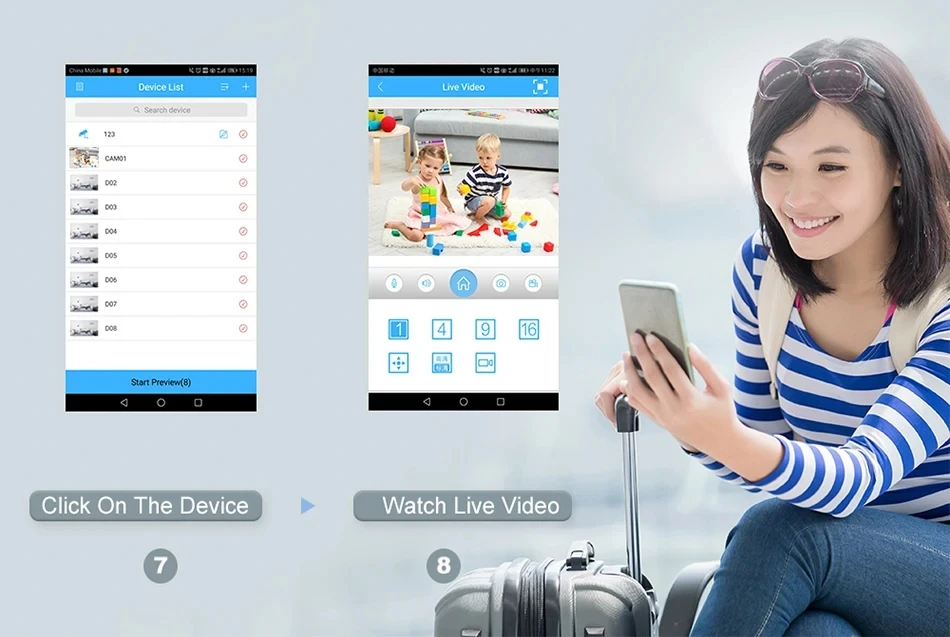

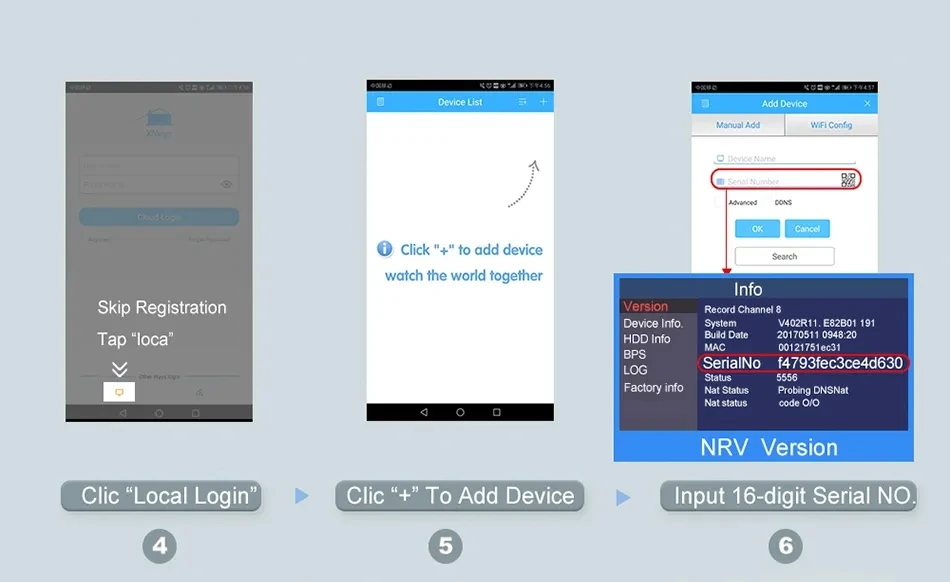

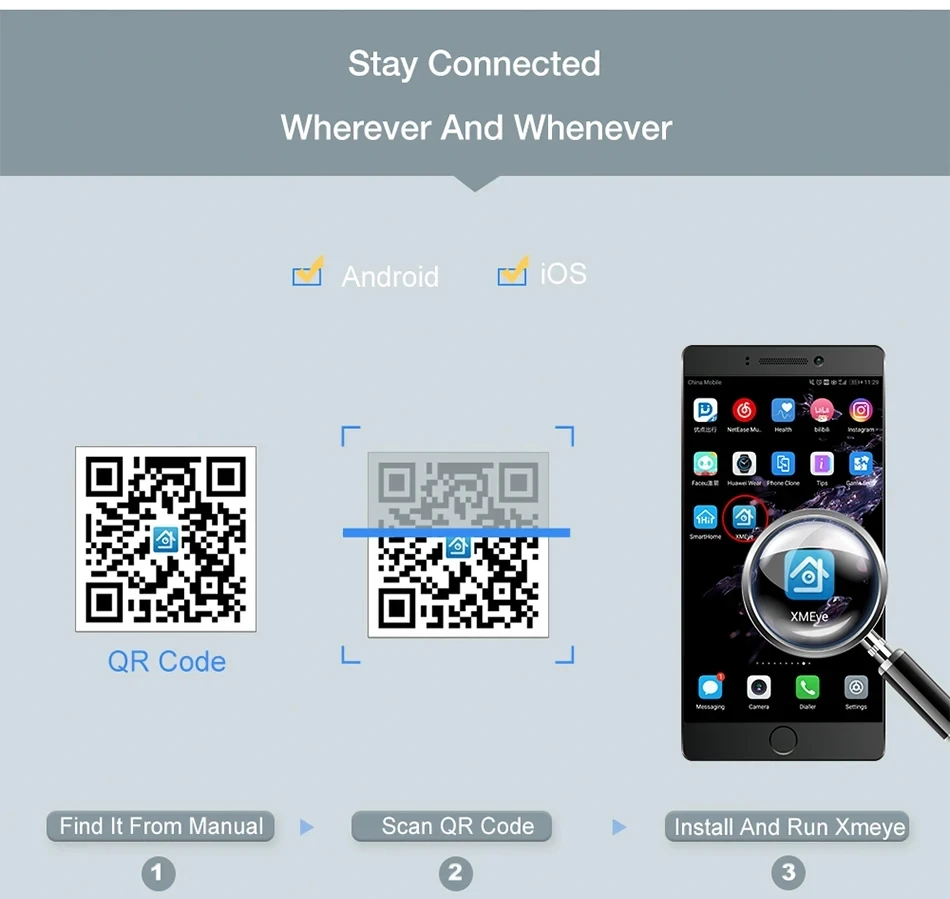

Support iOS and Android Device Access. Scan QR-Code to login. Download free app in Apple App store / Google play.

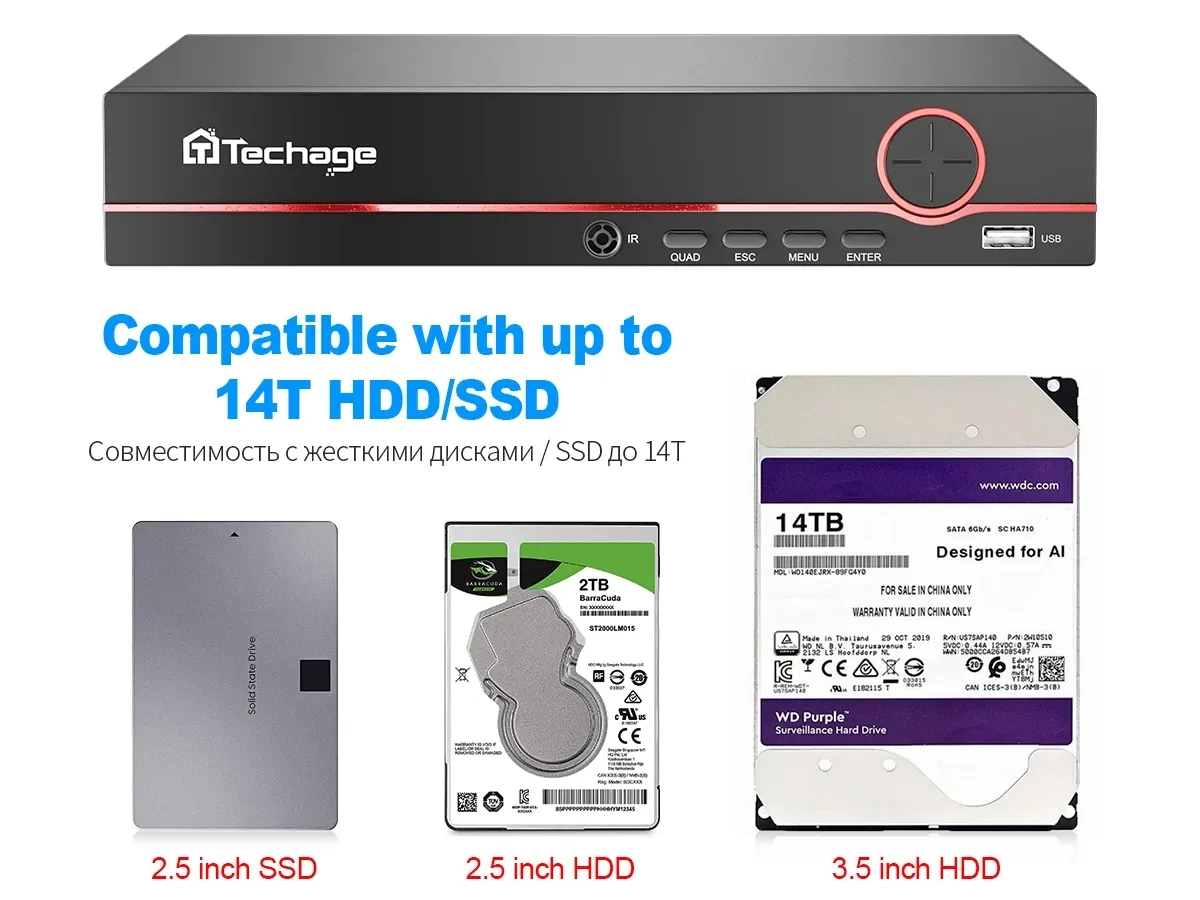

Our NVR Supports up to 14TB HDD
H.265 4K POE NVR ( with Audio out )
H.265 8CH 4K/8MP

Support web, CMS, center platform management software MYEYE

Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)

Display quality : 4K/8MP/5MP/4MP/1080P

Audio compression: G.711A

Mode: Manual>Alarm>Dynamic Detection>Timing

Storage: HDD

Backup mode : Network backup, USB hard disk, USB burner, SATA burner

Network interface: 8CH POE Port, the standard POE IEEE802.3af/at Protocol

P2P Remote View: Support iOS, Android

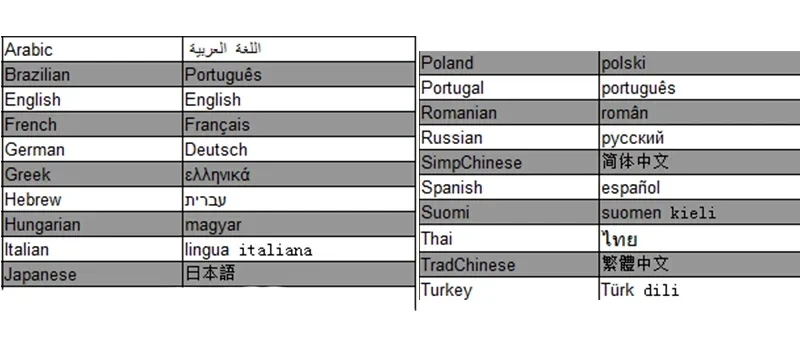

20+ Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German etc
8CH POE NVR can support 8CH 1080P / 8CH 5MP / 8CH 4K / 16CH 5MP
1, 8CH POE NVR can support 4K max, you can connect 2MP,4MP,5MP cameras with our NVR. but you need buy our 5MP cameras , then they can work together !
2, If you want connect 16CH 5MP cameras , you buy to buy a extra 8CH POE Switch , please contact us buy it !
Package Included:
1 x 8CH 4K POE NVR
1 X USB Mouse
1 x User Manual
1 X 48V Power Adapter for NVR
Specification
System
Main processor
Hi3536E
Operating System
Embedded Linux
System resources
Simultaneous multi-channel real-time
recording, playback, network operation,
USB backup
Interface
Operator interface
16-bit true color graphic menu operation
interface, support mouse operation
Preview
1/2/4/6/8/9/16
Video
Video input (IP)
16*4K（Access bandwidth 72Mbps）
Video compression
H.265AI/H.265+(compatible H.265/H.264)
Display quality
Max:4K
Playback quality
4K/5M/4M/3M/1080P
VR
Unsupport
human shape / Face
Support(depend on camera)
Audio
Audio compression
G.711A
Intercom
unsupport
Record
&
playback
Recording mode
Manual>Alarm>Dynamic Detection>Timing
Localpayback(real-time+ Un
real-time)
4K（1*real-time）/5M（1+1）/4M（2+1）/
3M（3+1）/1080P（4+1）
Search mode
Search by Time/Calendar/Event/Channel/Face
Record storage
HDD、Network
Backup mode
Network backup, USB hard disk, USB burner,
SATA burner
External
interface
Video output
1ch VGA，1ch HDMI HD output
Audio I/O
0/1（3.5MM audio output）
Alarm I/O
0/0
Network interface
1*RJ45 10M/100M Adaptive Ethernet port，Eight POE ports
USB interface
2*USB2.0 ports(one USB extension
interface is reserved)
HDD
1 SATA(Up to 14TB for each disk)
Other
ONVIF
Support
Power supply
52V/2.5A
Power Consumption
<10W(Without HDD)
Work environment
Temperature:0℃ －55℃ ,
Humidity:10%－90%RH , Atm:86kpa－106kp
