5MP HD Display
Built with professional image sensor, it can see up to 33ft night vision. Do not miss any details day and night.
Two-Way Audio & Audio Record
You will get a camera with true sound reproduction in order to record important sound evidence. And is equipped with high-quality built-in microphones and speakers, which can provide you with a clear and smooth communication experience
Face Detection & Email Alert & Alarm Sound
AI Human Body Detection and Face Detection ,Night activating Color onece detecting movement; When someone breaks into shooting area, the camera will make alarm sound and alarm messages will be pushed to your Phone APP.
Built-in 2Pcs White LED and 2Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.

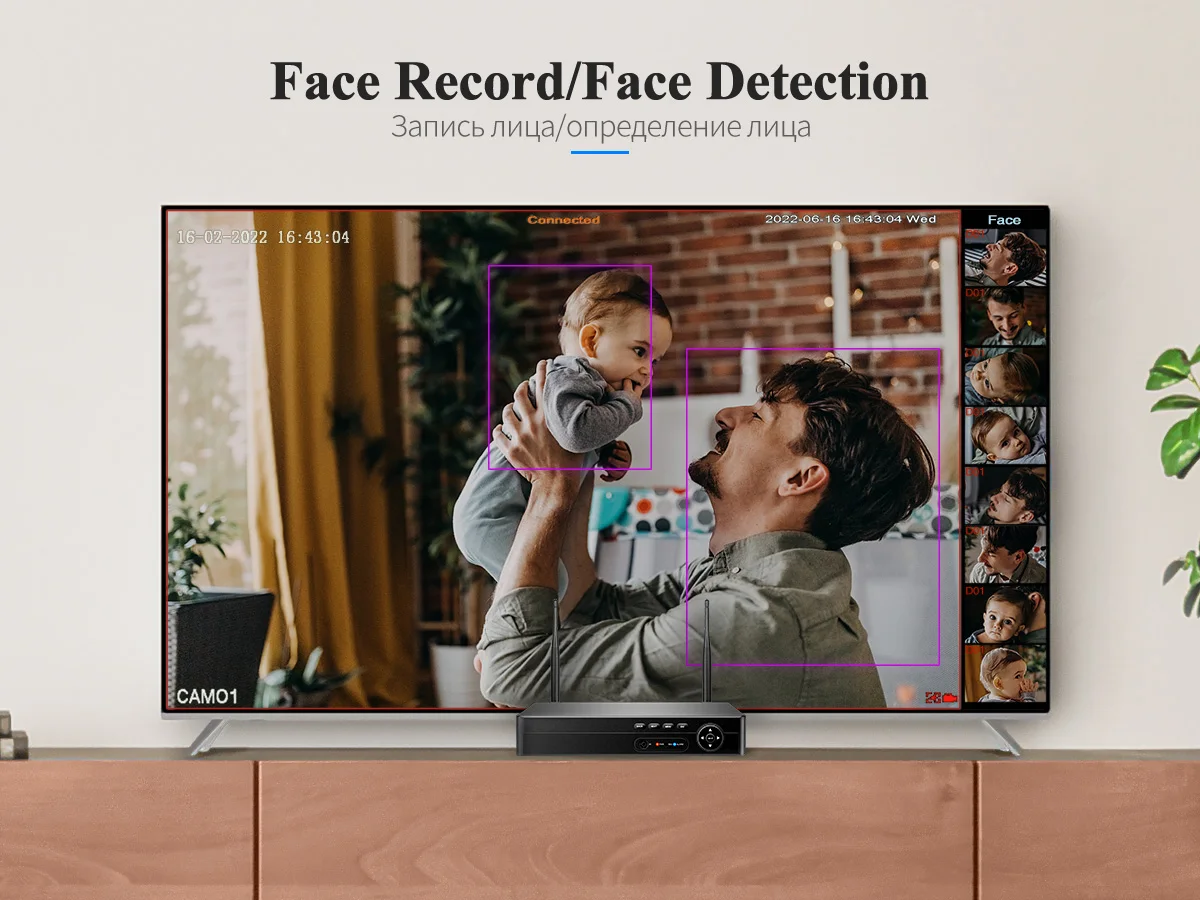

Face Record/Face Detection
Record Every Face That Appears On The Lens, Without Missing Any Details.

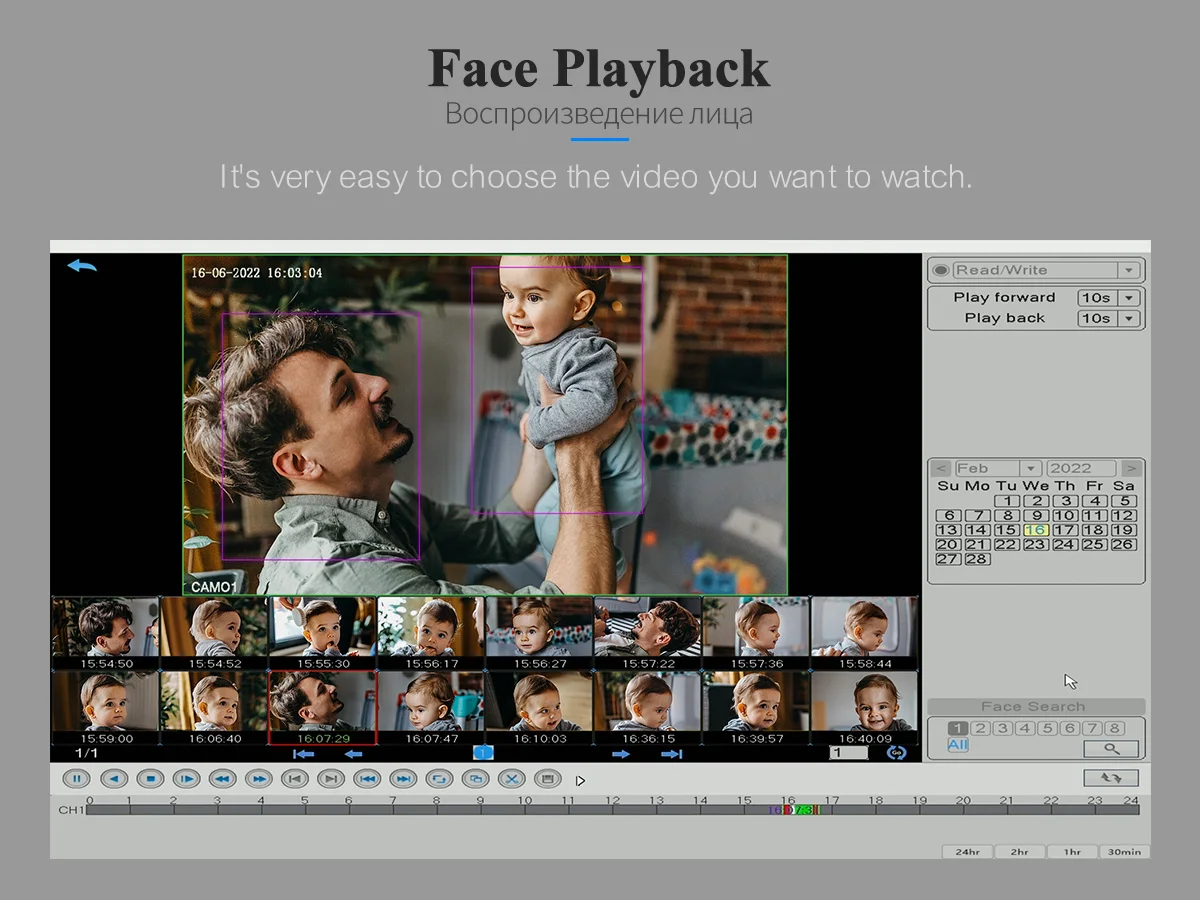

Face Playback
You can quickly find the information you want to see and find it accurately
Support Intelligent Humanoid Detection
Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.
H.265 CCTV System
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.
Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
Smart IR-Cut Full Color Night Vision
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark; Night activating Color onece detecting movement.

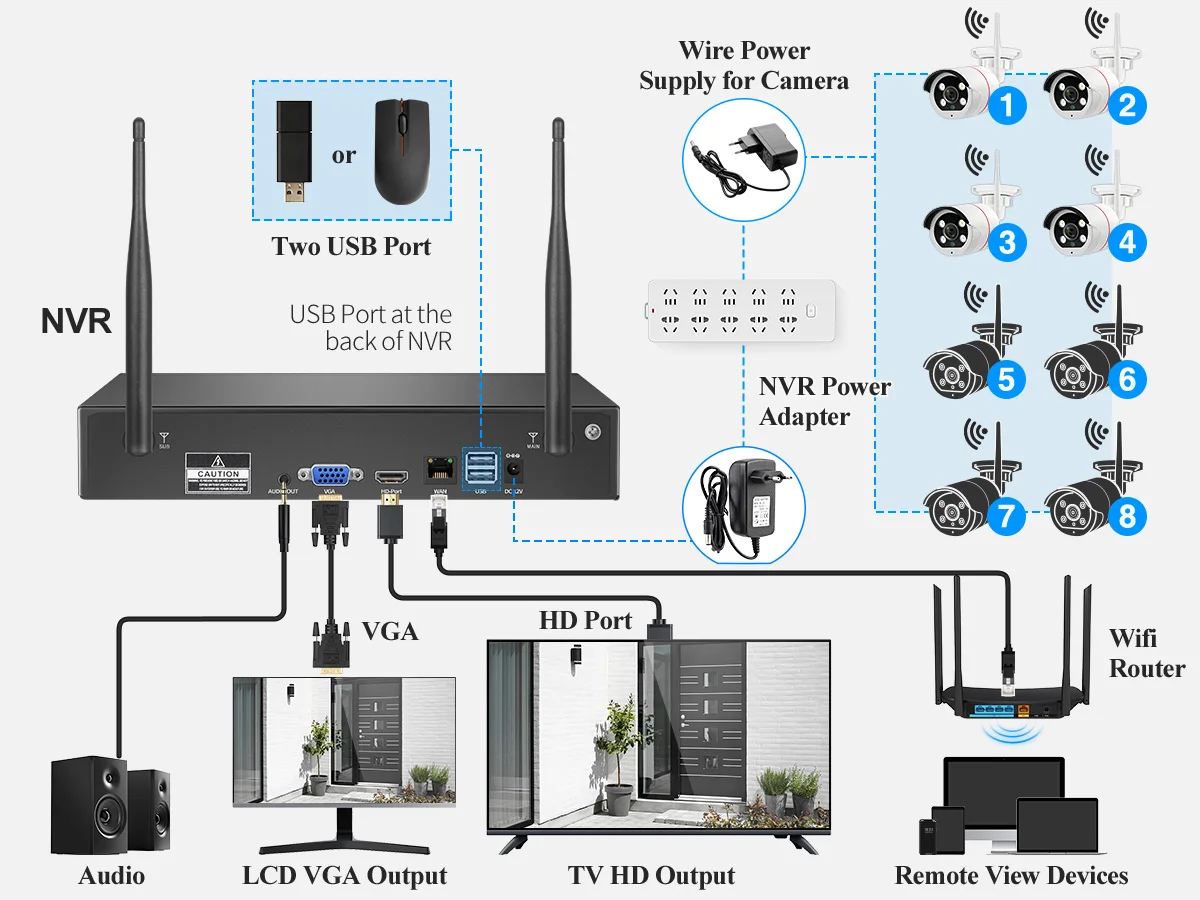

True Plug and Play,Easy Installation
Super easy installation and configurations. Real plug and play, no need of any professional skills,
you can totally do it yourself effortlessly and build your own surveillance system.
( 8 Channel NVR Design,support to connect up to 8pcs cameras,you can buy Techage wireless ip cameras to expand your cctv system.)

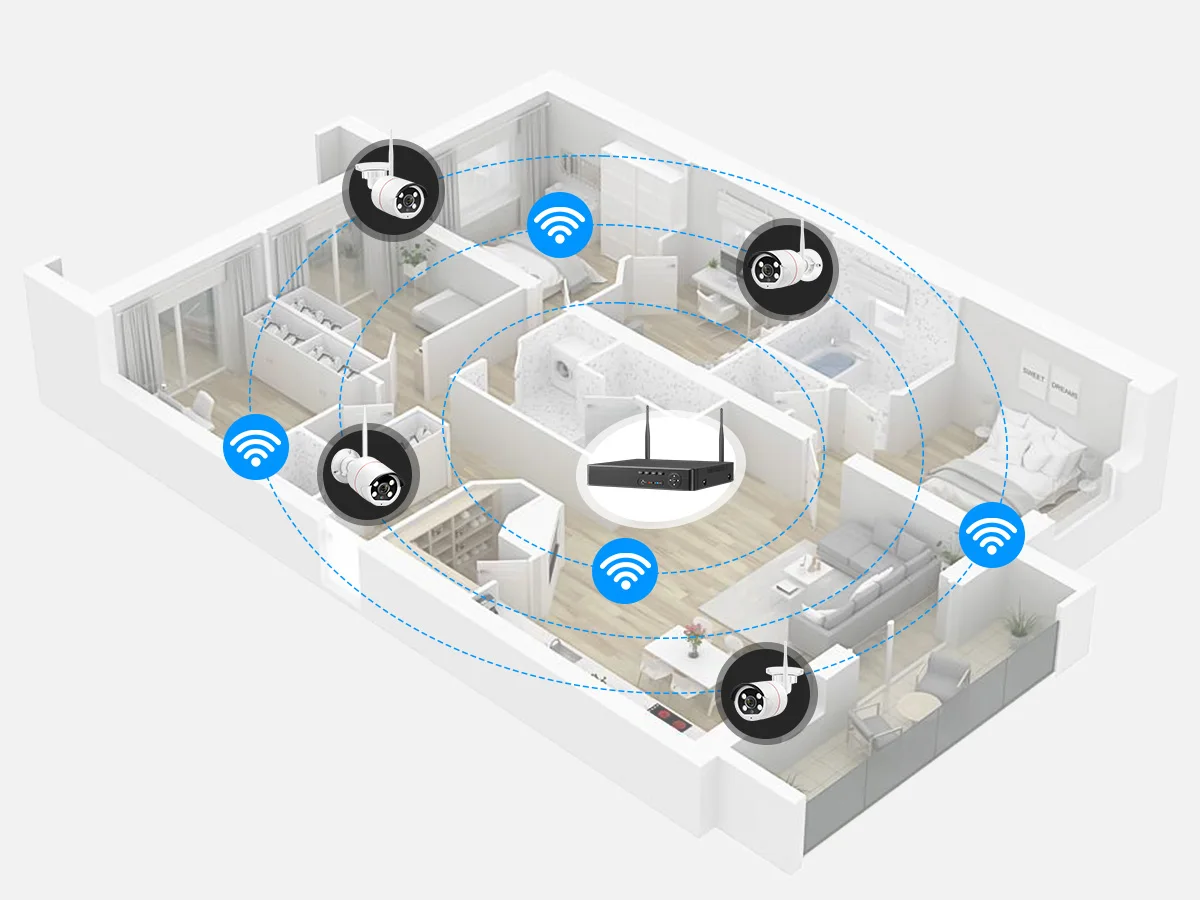

Strong wireless cascade technology
The latest WIFI cascading technology perfectly solves the problem of WIFI signal weakening and instability after long distances and through walls.

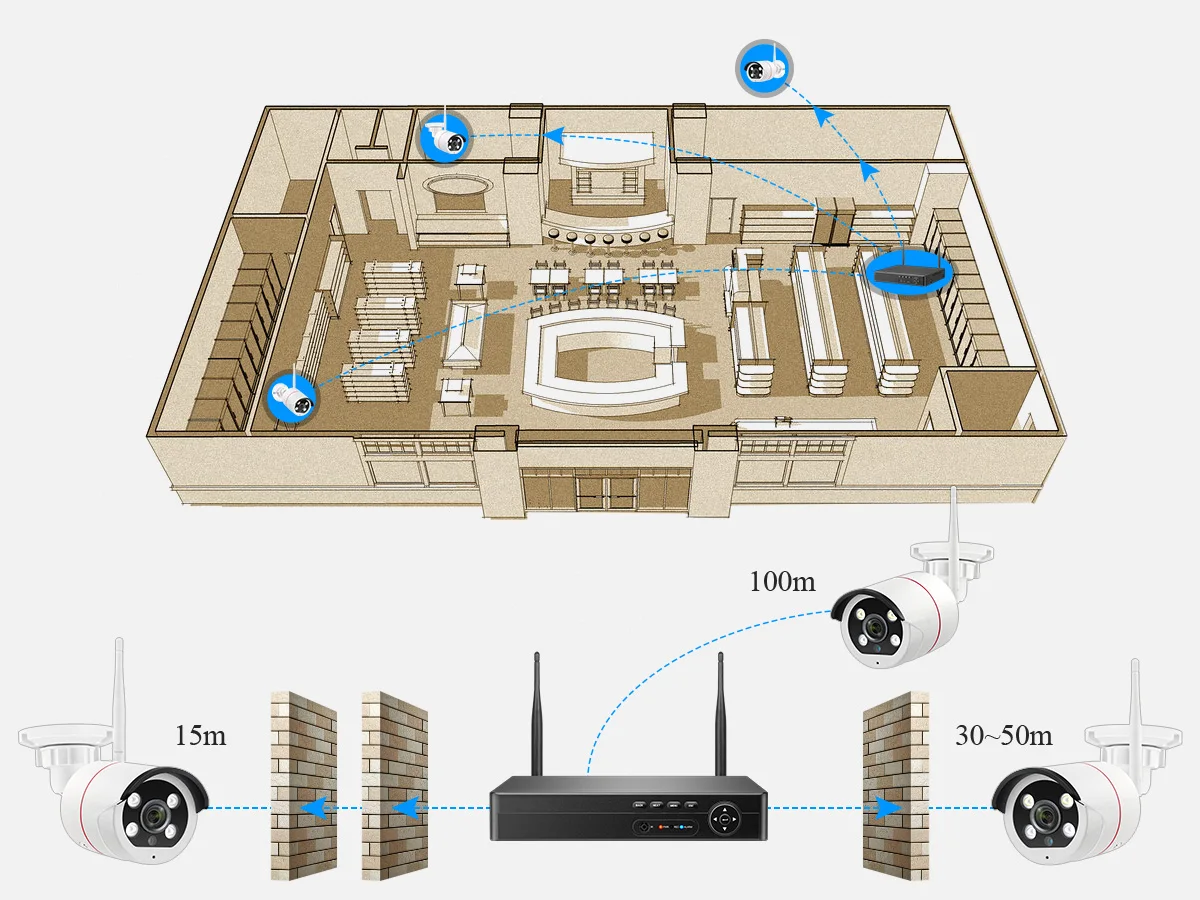

Wireless NVR WiFi Range
100 meters wireless transmission(no obstacle)
Built-in high power wireless router module, support 30-50 meters wireless transmission.

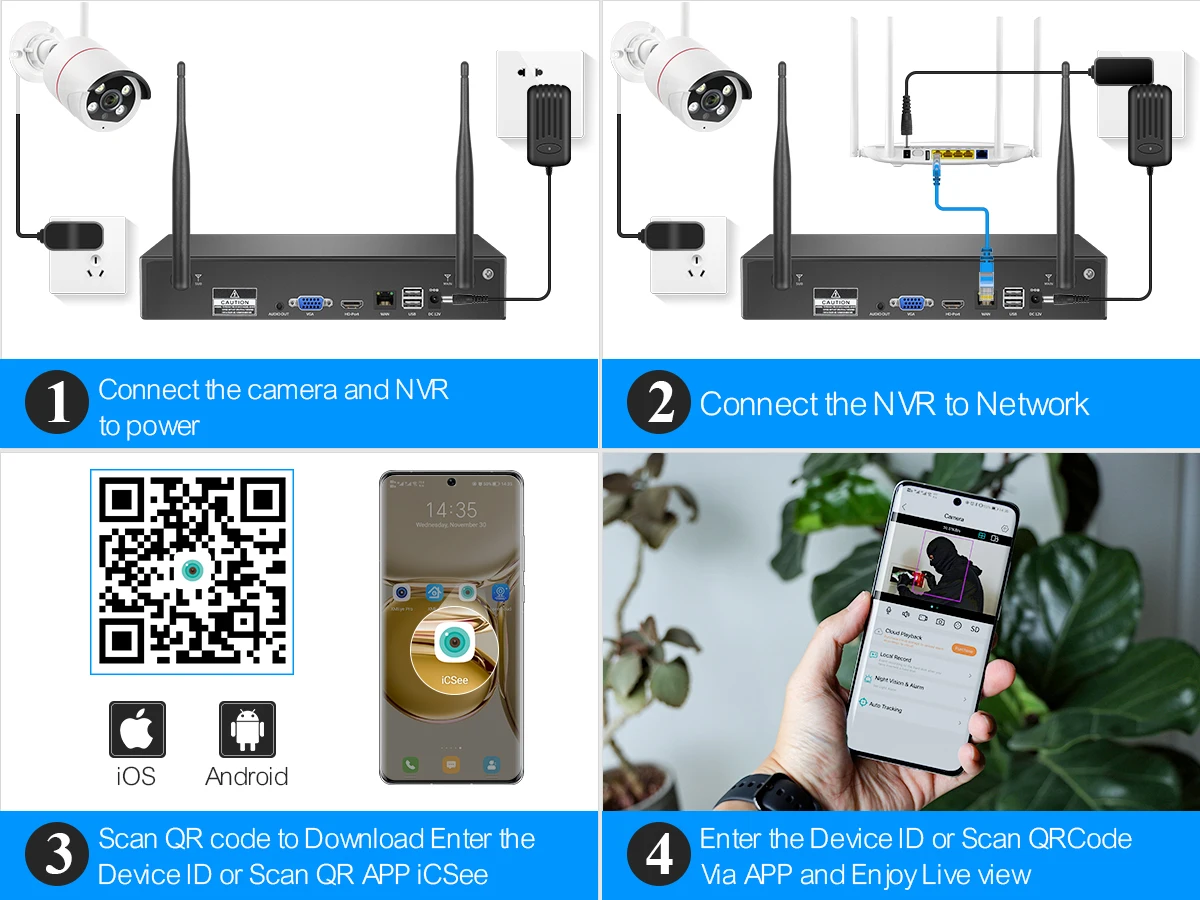

Mobile Phone Setting
Easy setting, just 4 steps for mobile phone viewing (Android and iPhone iOS)
IP66 Metal Waterproof Security Camera
Our camera is Metal Shell, all can suit for both outdoor and indoor usage
Video With Smart Playback
Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos

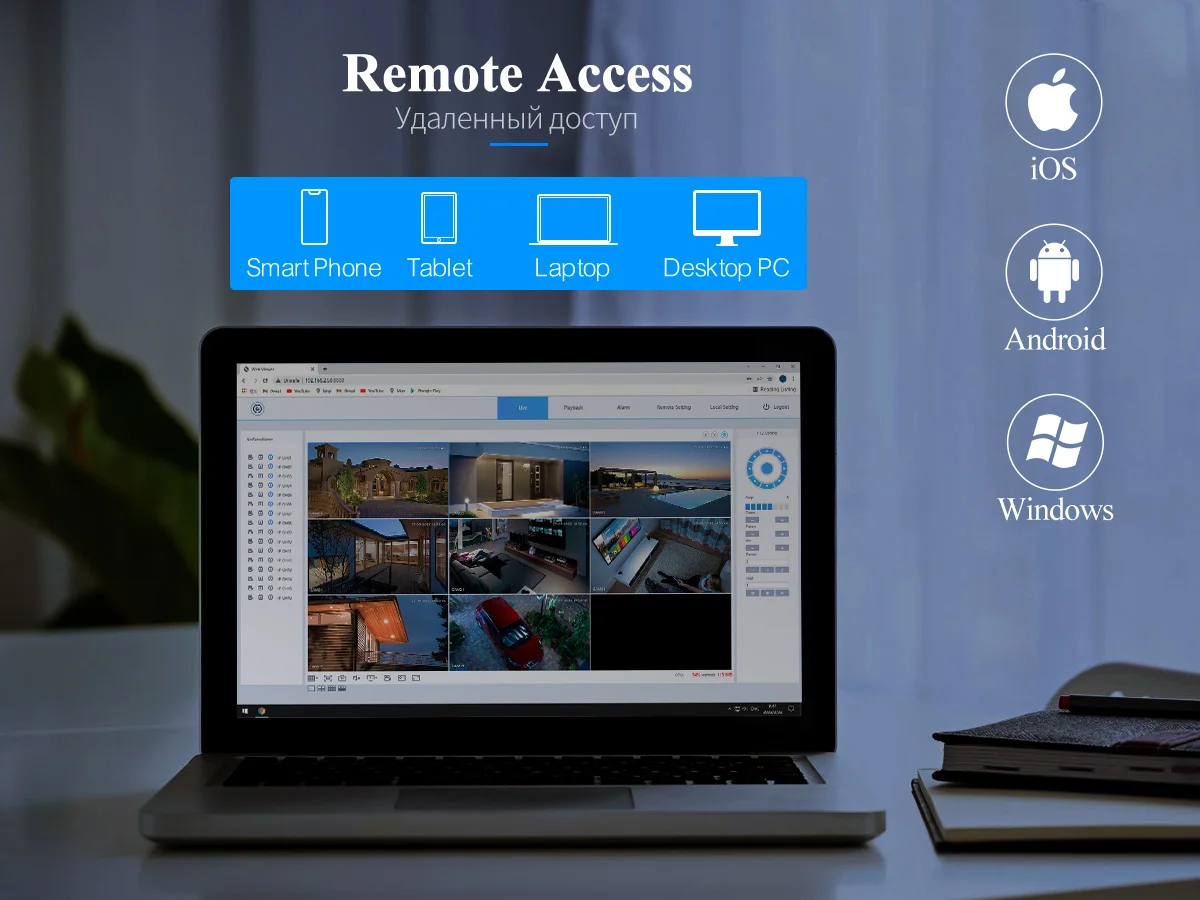

Remote Access Anytime, Anywhere
Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.
Model
|
Model Type:
|
WIFI Camera
|
Model No.
|
XM-608W-AI-50
|
System
|
System structure
|
Embedded RTOS design, dual-core 32-bit DSP GK7205V300, pure hard compression, watchdog
|
Video
|
Sensor
|
5 million 1/3 "CMOS sensor, color 0.01Lux@F1.2 , black and white 0.001Lux@F1.2
|
Video processing
|
H. 265+(compatible with H.265/H.264) encoding, dual code stream, AVI format; Bit stream 0.1M~6Mpbs adjustable
|
Image output
|
Main stream: 2880*1616@12fps,2560*1440@12fps; Subcode flow: 800*448@12fps
|
Shutter
|
1/50(1/60)to 1/10000 of a second
|
Noise reduction
|
2 d / 3 d noise reduction
|
Wide dynamic
|
Digital-wide dynamic
|
Lens
|
3.6mm hd lens
|
Night vision
|
IR-CUT,Infrared night vision, color filter automatically switch
|
light distance
|
Infrared 20m, white light 15m (2 white light, 2 infrared light)
|
Audio
|
Audio processing
|
G.711A Codec standard,two way audio,audio and video synchronization
|
Audio interface
|
-33DB high sensitive MIC,8 euro 1 watt high quality waterproof speaker
|
Network
|
Network interface
|
One RJ45 Ethernet port,10/100M auto-sensing,supports network protocols such as RTSP, FTP, DHCP, NTP, and UPnP
|
WIFI antenna interface
|
2.4g dual WIFI antenna
|
Alarm
|
|
Human detection, Face detection, smart AI alarm
|
|
APP push, voice alarm, video recording, capture pictures
|
Video
|
Video mode
|
Timing video, event video
|
Playback mode
|
Event playback, time playback
|
Other
|
Reliability
|
Comprehensive lightning protection,in line with national and international standards,7*24 hours 65℃ high temperature test is
stable and reliable
|
ONVIF
|
support
|
Cell phone monitoring
|
Mobile phone monitoring (iOS, Android)
|
power
|
DC12V/1A
|
Material
|
Metal Housing
|
Reset
|
Support one-button reset function
|
Work environment
|
Temperature
|
-20℃ to +55℃
|
Humidity
|
30% to 80% RH
|
Model
|
TS-6108BW
|
System
|
Operation
|
Embedded LINUX operating system
|
System resources
|
Multi-channel real-time video recording, multi-channel real-time playback, multi-channel multi-person network operation, USB
backup
|
Interface
|
Operation interface
|
16 bit true color graphical menu operation interface, supporting mouse operation
|
Screen display
|
1 / 2 / 4 / 6 / 8 / 9 screen
|
Vedio
|
Video access mode
|
8Channel 5MP
|
Image decoding
|
H.265AI/H.265+(compatible H.265/H.264)
|
Monitoring
|
Max:1080P
|
Playback
|
5M
|
Decoding
|
5M(1+1)/4M(2+2)/3M(3+3)/1080P(5+3)
|
Human face detection
|
Support (XM front-end camera)
|
Audio
|
Audio compression
|
G.711A
|
Voice intercom
|
Support, 3.5mm headphone hole
|
Video recording and playback
|
Video mode
|
Manual > Alarm > Dynamic Detection > Timing
|
Local playback
|
5M(1+1)/4M(2+2)/3M(3+3)/1080P(5+3)
|
Video query
|
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval
|
Record
|
Local hard disk, network, cloud storage
|
Backups
|
Network backup, USB mobile hard drive, USB burning, SATA burning
|
Port
|
Video output
|
1 channel HDMI HD output, 1 channel VGA output
|
Audio I / O
|
1 / 1 (3.5mm interface)
|
Network interface
|
1 RJ45 10m / 100M adaptive Ethernet port, 8-Channel WiFi
|
USB Port
|
2 USB2.0 Port
|
Hard disk
|
1 SATA interface (each supporting up to 14T)
|
Other
|
Power
|
DC52V/2.5A
|
Work environment
|
Temperature: 0 ℃ - + 55 ℃, Humidity: 10% - 90%
|
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?Complete HD Camera system:
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
