5MP Wifi Camera System Cctv Ip Camera Set Security Two Way Audio Wireless Home Security Camera Kit

5MP Wifi Camera System Cctv Ip Camera Set Security Two Way Audio Wireless Home Security Camera Kit

Item NO.: 6108BW-63-AI-50W
6108BW-63-AI-50W
6108BW-2-63-AI-50W 6108BW-4-63-AI-50W 6108BW-6-63-AI-50W 6108BW-8-63-AI-50W
Inquiry

Detail

Model
TS-6108BW
System
Operation
Embedded LINUX operating system
System resources
Multi-channel real-time video recording, multi-channel real-time playback, multi-channel multi-person network operation, USB
backup
Interface
Operation interface
16 bit true color graphical menu operation interface, supporting mouse operation
Screen display
1 / 2 / 4 / 6 / 8 / 9 screen
Vedio
Video access mode
8Channel 5MP
Image decoding
H.265AI/H.265+（compatible H.265/H.264）
Monitoring
Max:1080P
Playback
5M
Decoding
5M（1+1）/4M(2+2)/3M（3+3）/1080P（5+3）
Human face detection
Support (XM front-end camera)
Audio
Audio compression
G.711A
Voice intercom
Support, 3.5mm headphone hole
Video recording and playback
Video mode
Manual > Alarm > Dynamic Detection > Timing
Local playback
5M（1+1）/4M(2+2)/3M（3+3）/1080P（5+3）
Video query
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval
Record
Local hard disk, network, cloud storage
Backups
Network backup, USB mobile hard drive, USB burning, SATA burning
Port
Video output
1 channel HDMI HD output, 1 channel VGA output
Audio I / O
1 / 1 (3.5mm interface)
Network interface
1 RJ45 10m / 100M adaptive Ethernet port, 8-Channel WiFi
USB Port
2 USB2.0 Port
Hard disk
1 SATA interface (each supporting up to 14T)


Model
Model Type:
WIFI Camera
Model No.
XM-63-AI-50W
System
System structure
Embedded RTOS design, dual-core 32-bit DSP (XM550AI), pure hard compression, watchdog
Video
Sensor
5 million 1/2.7"SC533P high performance CMOS sensor; Color 0.001Lux@F1.2, black and white 0.0001Lux@F1.2
Video processing
H.265AI encoding, double stream,AVI format; The code flow is adjustable from 0.1m to 10Mpbs; The frame rate is adjustable from 1
to 30 frames/SEC
Image output
Main stream: 2592*1944@12fps; Subcode flow: 640 * 360 @ 12 FPS
Shutter
1/50(1/60)to 1/10000 of a second
Noise reduction
2 d / 3 d noise reduction
Wide dynamic
Digital-wide dynamic
Lens
3.6mm hd lens
Night vision
IR-CUT，Infrared night vision, color filter automatically switch
light distance
Infrared 15m, white light 12m (2 white light, 2 infrared light)
Audio
Audio processing
G.711A Codec standard，two way audio，audio and video synchronization
Audio interface
-33DB high sensitive MIC,8 euro 1 watt high quality waterproof speaker
Network
Network interface
One RJ45 Ethernet port,10/100M auto-sensing
WIFI antenna interface
2.4g dual WIFI antenna
Alarm
Human detection, motion detection, smart AI alarm
APP push, voice alarm, video recording, capture pictures
Video
Video mode
Timing video, event video
Playback mode
Event playback, time playback
Storage
Storage
Local TF card, up to 128G; Cloud storage
Other
Reliability
Comprehensive lightning protection，in line with national and international standards,7*24 hours 65℃ high temperature test is
stable and reliable
ONVIF
support
Cell phone monitoring
Mobile phone monitoring (iOS, Android)
power
DC12V/1A
Material
Metal Housing
Reset
Support one-button reset function
Work environment
Temperature
-20℃ to +55℃
Humidity
30% to 80% RH

Main Features:
1.HD 3MP/5MP WiFi Camera System. Support Human/Motion Detection + Email Alert + Alarm Siren. Trigger multiple alarms at the same
time to scare off intruders.
2. Support custom camera alarm sound or alarm bell.
3. 8 channel 5MP Wifi NVR design, support to connect up to 8pcs 5MP Cameras.
4. The cameras have bulit in microphone and speaker, support two-way audio recording.
5. Three Night Vision Modes Setting: Infrared night vision, Dual warning lights, Full color night vision.
6. P2P Multi-User Remote Access: P2P technology let you be able to view the live situation of your house wherever you are, just
with the P2P account on the app via your Smartphone or tablet.
7. XMEye Pro independently developed the RTS Cloud architecture, which is faster and the preview is more stable.
8. IP66 Waterproof Metal Bullet Camera

Package Includes：
1 x H.265 8CH 5MP WiFi NVR.
2/4/6/8 x 3MP/5MP WiFi IP Cameras.
1 x Power Supply for NVR.
1 x USB Mouse for NVR.
1 x Network Cable for NVR.
1 x User Manual.
2/4/6/8 x Screw bags.
2 x Warning Sticker (gift).

No HDD / 1TB / 3TB HDD for Optional.
HD 3MP/5MP Resolution Camera
HD 3MP/5MP camera can display fine image quality. The picture is clear and closer to the real scene.
Smart AI Human Motion Detection + Email Alert + Alarm Siren
When it detects a moving human body at night, 6 pcs white LED lights will light up as a warning deterrent and provide a color surveillance video and send alarm message to your mailbox.
Support Intelligent Humanoid Detection
Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.
Real-time Two-way communication
Cameras are equipped with high-quality built-in microphones and speakers, which can provide you with a clear and smooth communication experience
Smart IR-Cut Full Color Night Vision
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark

When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.
H.265 WiFi CCTV System
H.265 More Clear, HD resolution offer you best image quality in a lower bit rate.
Save More Storage Space, can reduce 40%-50% file size.
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.
Metal Cameras support IP66 Weatherproof
Our camera support IP66 weatherproof, all can suit for both outdoor and indoor usage
Strong wireless cascade technology
The latest WIFI cascading technology perfectly solves the problem of WIFI signal weakening and instability after long distances and through walls.
True Plug and Play,Easy Installation
Super easy installation and configurations. Real plug and play, no need of any professional skills,

you can totally do it yourself effortlessly and build your own surveillance system.

( 8 Channel NVR Design,support to connect up to 8pcs cameras,you can buy Techage wireless ip cameras to expand your cctv system.)
Wireless NVR WiFi Range
100 meters wireless transmission(no obstacle)

Built-in high power wireless router module, support 30-50 meters wireless transmission.

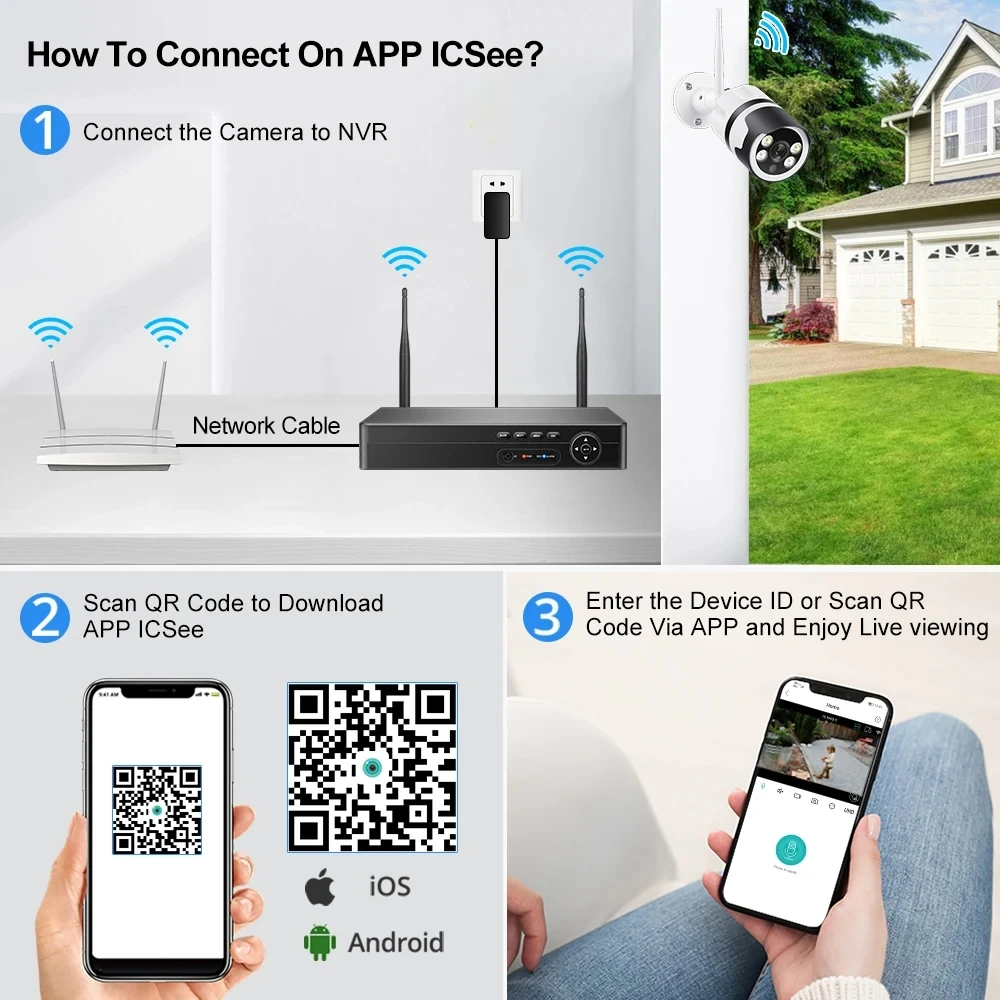

Mobile Phone Setting
Easy setting, just 4 steps for mobile phone viewing (Android and iPhone iOS)
Video With Smart Playback
Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos
P2P Remote Access & Multi-user
Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.

Support iOS and Android Device Access. Scan QR-Code to login. Download free app in Apple App store / Google play.
The cameras can be used lonely.

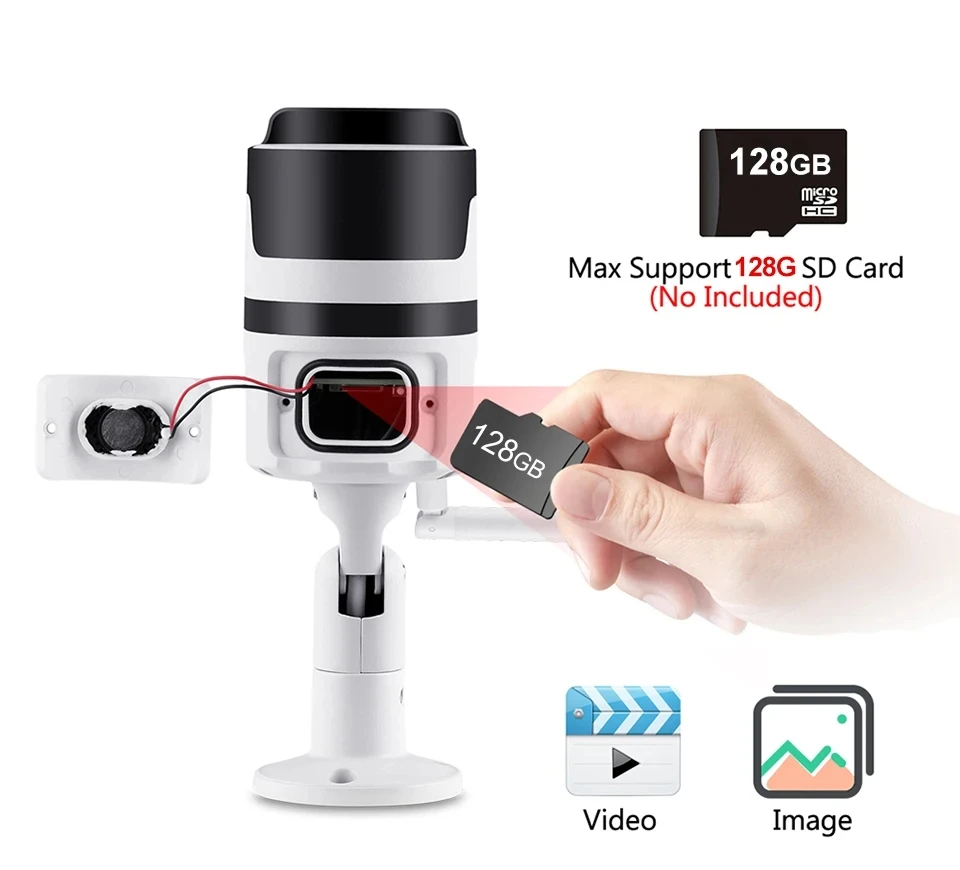

Support up to 128GB TF Card Storage

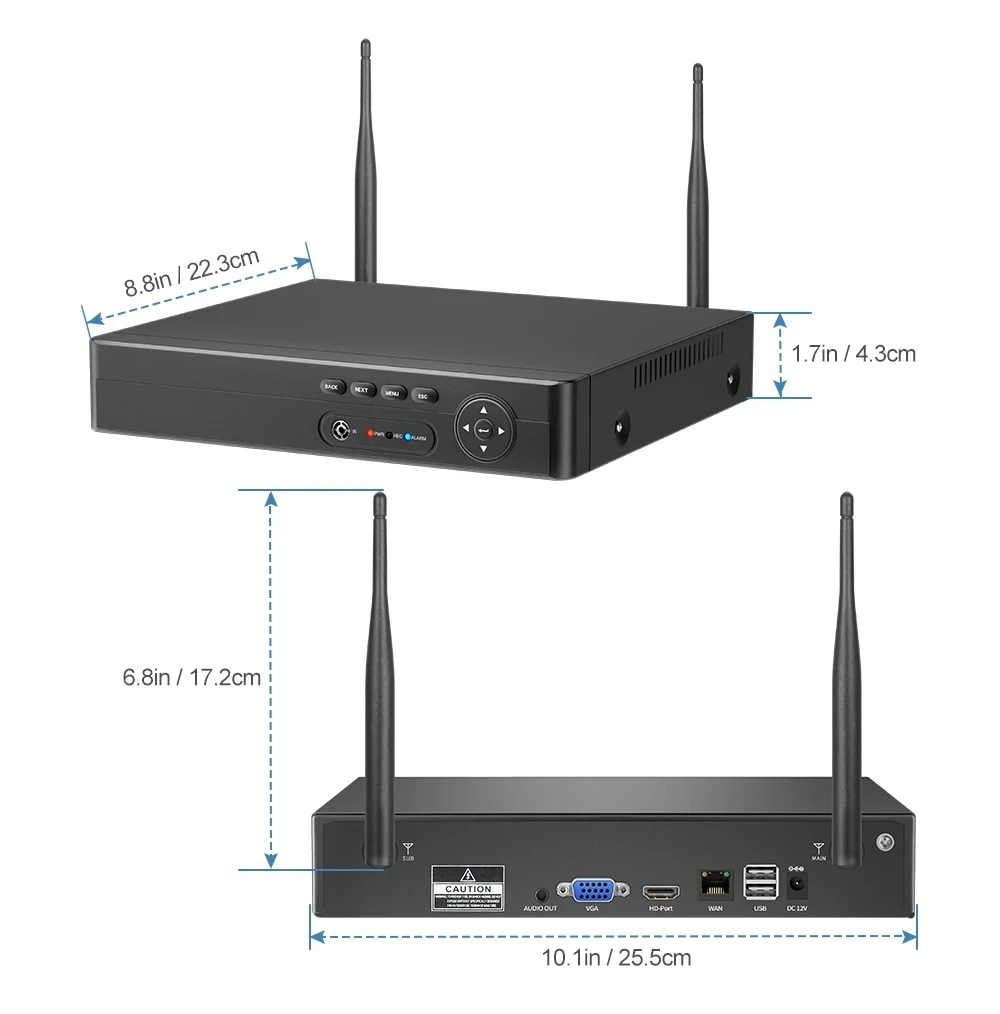

Wireless Wifi NVR
Video Compression: H.265

Encode Capacity: 8CH 5MP

Video Outputs: HD port, VGA

HDD: 1*SATA port (Support Up To 4TB)

P2P Remote View: Support iOS, Android

20+ Languages Available: Russian, English, Portuguses, Spanish, French, German etc.
