Home>POE NVR/Switch>H.265 16CH POE NVR Support Max 4K Resolutin XMEYE Recorder

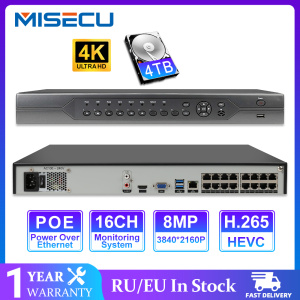

H.265 16CH POE NVR Support Max 4K Resolutin XMEYE Recorder

H.265 16CH POE NVR Support Max 4K Resolutin XMEYE Recorder

US$ 277.60
Ships From
Czech Republic China Russian Federation
Build-in HDD
None 3T 4T
  • Detail
    • Product Name: H.265 16CH POE NVR Support Max 4K Resolutin XMEYE Recorder
    • Item NO.: 32557709077
    • Weight: 8.2 kg = 18.0779 lb = 289.2465 oz
    • Category: POE NVR/Switch
    • Brand: Misecu
    • Creation Time: 2022-06-22


    1 x16CH 5MP 48V POE NVR

    1 X USB Mouse

    1 X Screws

    1 x User manual (English)

    1 X 48v Power Adapter for nvr

    H.265 only need less bandwidth,faster loading speed,more smooth video
    Lower bite rate,higher image quality
    Megapixel Super HD
    Experiencee what4K/3.0MP/5.0MPbrings

    Remote accessanytime anywhere

    Support remote access via Windows PC,iPhone,Android mobile.


    *Note: Display resolution depend on cameras resolutions.

    product description

    Support VGA output, support 4K full HD output; Support ONVIF protocol, connect to third party equipment; Support web, CMS, center platform management software MYEYE, provide SDK development; Support multiple cloud technologies, achieve network penetration, before and after End-to-end docking, alarm information pushed to mobile phones and other functions; powerful network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,IP search, alarm center, etc.); Remote access, comes with domain name service Function (ARSP), remote monitoring with one button enabled.

    Technical Parameters

    Chips Model




    Operating System

    Embedded LINUX

    System Resources

    Pentaplex function:live,recording,playback,backup & remote access


    Operation interface

    16-bit true color graphical menu operator interface with mouse operation




    Vidie input


    Video Compression


    Monitoring Resolution


    Playback Resolution


    Motion Detection

    ( Depends on Camera ,the front-end ip camera must have this function )


    Audio Conpression


    Record Playback

    Recording Mode



    8CH 3MP/4CH 5MP/2CH 4K

    Search Mode

    Time/Date,Alarm,Motion Detection & exact search(accurate to second)

    Video saved

    Local HDD,network

    Backup Mode

    Network download/Flash stick/USB/SATA


    Video Output

    1CH VGA output

    Alarm I/O


    Net Interface

    1CH RJ45 10M/100M/1000M

    USB Interface

    2* USB2.0 port for mouse and backup

    HDD Interface

    1 SATA port(Max 1 x 8T)Don't included



    Relay Output






    4K High Definition Display
    16CH NVR: 16*3MP/16*5MP/8*4K
    This is 48V 5MP POE NVR, Max support 4K resolution.
    it can compatible with H.264/H.265 POE IP Camera 1080P/3MP/4MP/5MP.

    Support Multi-Languages

    APP connection(XMEYE APP)

    CMS For Local Review & Record

    Default IP Address:  User Name: admin  Password :null(empty)

    Default Username of CMS: super Password: null(empty)

    1.Please confirm your address carefully when you make

    2.the order.especially check your post code and city is correct information , otherwise your parcel won't be ship out.If you choose express shipment and your address is defined as remote areaby Fedex /DHL/TNT/EMS, you'll need pay extra $30 remote shipping fee.Or please give us a new another address that is not remote.Remote area check via link(choose 30pcs,then pay 30USD) :

    1. One year warranty for all the products.If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replace.

    2. Item guaranteed to work,or we replace it if item DOA(Dead of Arrival).Buyers return it in 15 days,we will replace it with new item after wereceive DOA item.

    3.However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic compay to recover the cost of damage or loss

    Shipment from China might come with additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.

    MISECU is notresponsible for those charges.

    MISECU has become the world's leading brand of video surveillance solutions,specializing in research & development, production and sales ofsecurity products. MISECUhas established distribution channels in more than 30 countries and regions. 100 million of MISECU products have beensold to over 100 countries.

    NO HDD Or included 2TB,3TB 4TB HDD, Depend on your choose.Suggested buy HDD form our store,we will install inside NVR before shipping.


    Plug and play,don't need extra power cables or adapters or switch

    AdvancedH.265Video Compression

    H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. This means

    H.265 video saves around 50% of the bit rate at the same quality of coding.

    Save More Storage Space

    Transmission Distance

    POE System max support100-150m POEcables transmission distance, which greatly increases home installation convenience.

    H.264/H.265 Available

    *Note*: H.264 Camera will be display H.264 Compression code.


    Easy locate the video you'd like to playback.Save much time
