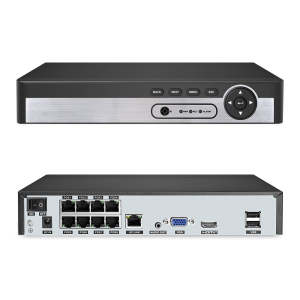

8CH POE NVR Support Onvif Rtsp Ftp DDNS

US$ 60.00

Customization

Customized logo	Min. Order: 10 Pieces
Customized Packing	Min. Order: 10 Pieces

Specification

	Model	XM-6108K
System	Main processor	Hi3536E
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Interface	Preview	1/2/4/6/8/9/16
Video	Video input (IP)	16*4K（Access bandwidth 72Mbps，Need to connect with 100M POE module）
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:4K
	Playback quality	4K/5M/4M/3M/1080P
	VR	Unsupport
	human shape / Face	Support(depend on camera)
Audio	Audio compression	G.711A
Audio	Intercom	unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Localpayback(real-time+Un real-time)	4K（1*real-time）/5M（1+1）/4M（2+1）/3M（3+1）/1080P（5+1）
	Search mode	Search by Time/Calendar/Event/Channel/Face
	Record storage	HDD、Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output	1ch VGA，1ch HDMI HD output
	Audio I/O	0/1（3.5MM audio output）
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port
	USB interface	2*USB2.0 ports(one USB extension interface is reserved)
	HDD	1 SATA(Up to 14TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	Support
	Power supply	48V/3A or 52V2.5A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Packing

Certification	CE, FCC, RoHS
Customized support	Online technical support, Customized logo, OEM, ODM
Place of Origin	China Guangdong
Net weight	1.6KG
Gross weight	1.81kg
