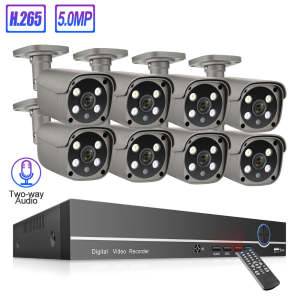

8CH 5MP POE Camera Kit

US$ 299.00

Customization

Customized logo	Min. Order: 10 Set
Customized Packing	Min. Order: 10 Set

Camera Specification

Model Name	XM-605GP-AI-50G
Image Sensor	CMOS 1/2.8"SC5239S
Resolution	5mp
Image output	Main stream: 28801616@20fps, 25601440@25fps, 23041296@25fps, 19201080@25fps; sub stream: 800*448@25fps
Compression	H.264/H.264+/H.265/H.265+/JPEG/AVI
TV System	PAL/NTSC
Electronic Shutter Time	1/50 (1/60) second to 1/10000 second
PTZ	NO
Audio processing	G.711A
Video Output	YES
Reset Button	NO
Lens	3.6mm
SD Card	NO
Network	IP
IR LED Light	2 White Lights + 2 Infrared Lights
IR Distance	30 meters
Day/Night	Color/ B&W (IR-CUT )
Material	Metal ( Waterproof IP67 )
Function	Waterproof / Weatherproof, Two-way Audio, Built-in Siren, Built-in Mic
Special Features	Human Motion Tracking, Night Vision, Alarm O/I, Reset
Wireless	YES
Protocol	HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP
ONVIF	Support ONVIF 2.0
P2P	YES
IE Brower	Below IE 7.0
Smart Phone	Iphone, Android
AI Function	Support
APP	Icsee, xmeye pro app, cms/vms software
Recording Mode	24/7, Motion, Manual Recording
APP Language	It works follow your phone's language
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Audio	2 Way Audio
Operation Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	POE 48V / Power supply: DC12V/2A, power consumption: ≤3W
Certification	ce, FCC, RoHS
Customized support	Online technical support, Customized logo, OEM, ODM
Place of Origin	China Guangdong
Net weight	0.52KG
Gross weight	0.55kg
Size	2110.58cm

NVR Specification

	Model	XM-6708K
System	Main processor	Hi3536E
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Interface	Preview	1/2/4/6/8/9/16
Video	Video input (IP)	16*4K（Access bandwidth 72Mbps，Need to connect with 100M POE module）
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:4K
	Playback quality	4K/5M/4M/3M/1080P
	VR	Unsupport
	human shape / Face	Support(depend on camera)
Audio	Audio compression	G.711A
Audio	Intercom	unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Localpayback(real-time+Un real-time)	4K（1*real-time）/5M（1+1）/4M（2+1）/3M（3+1）/1080P（5+1）
	Search mode	Search by Time/Calendar/Event/Channel/Face
	Record storage	HDD、Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output	1ch VGA，1ch HDMI HD output
	Audio I/O	0/1（3.5MM audio output）
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port
	USB interface	2*USB2.0 ports(one USB extension interface is reserved)
	HDD	1 SATA(Up to 14TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	Support
	Power supply	48V/2A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
	Certification	CE, FCC, RoHS
	Gross weight	2.5kg
