5MP 8CH Wireless Surveillance Security System AI Face Detection Video CCTV WIFI NVR Camera Kit Two Way Audio P2P ONVIF

5MP 8CH Wireless Surveillance Security System AI Face Detection Video CCTV WIFI NVR Camera Kit Two Way Audio P2P ONVIF

Item NO.: 6108BW-608W-AI-50
Similar Style
5MP 8CH Wireless Surveillance Security System AI Face Detection Video CCTV WIFI NVR Camera Kit Two Way Audio P2P ONVIF
Style
8CH 8 cameras kit 8CH 6 cameras kit 8CH 4 cameras kit 8CH 2 cameras kit

Detail

  • Package Includes
  • 1 x H.265 8CH 5MP Wireless NVR
  • 2/4/6/8 x 5MP WIFI Cameras
  • 1 x Power Supply for NVR
  • 2/4/6/8 x Power Adapter for Cameras (3 meters)
  • 1 x 1m Lan Cable For NVR
  • 1 x USB Mouse
  • 2/4/6/8 x Screws
  • 1 x Remote Controller
  • 2 x Warning Sticker (gift)
  • 1 x English User's Manual

5MP HD Display

Built with professional image sensor, it can see up to 33ft night vision. Do not miss any details day and night.

Two-Way Audio & Audio Record

You will get a camera with true sound reproduction in order to record important sound evidence. And is equipped with high-quality built-in microphones and speakers, which can provide you with a clear and smooth communication experience

Face Detection & Email Alert & Alarm Sound

AI Human Body Detection and Face Detection ,Night activating Color onece detecting movement; When someone breaks into shooting area, the camera will make alarm sound and alarm messages will be pushed to your Phone APP.

Built-in 2Pcs White LED and 2Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.

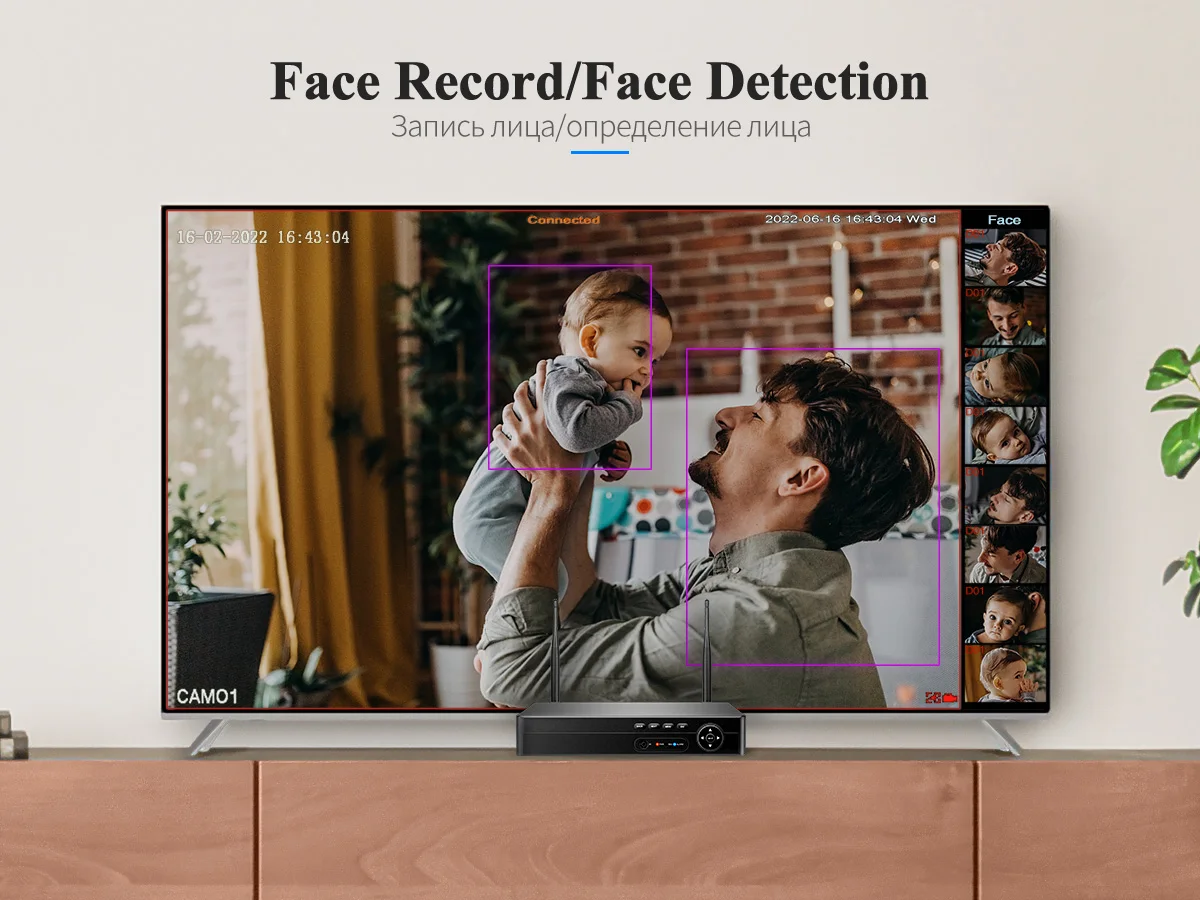

Face Record/Face Detection

Record Every Face That Appears On The Lens, Without Missing Any Details.

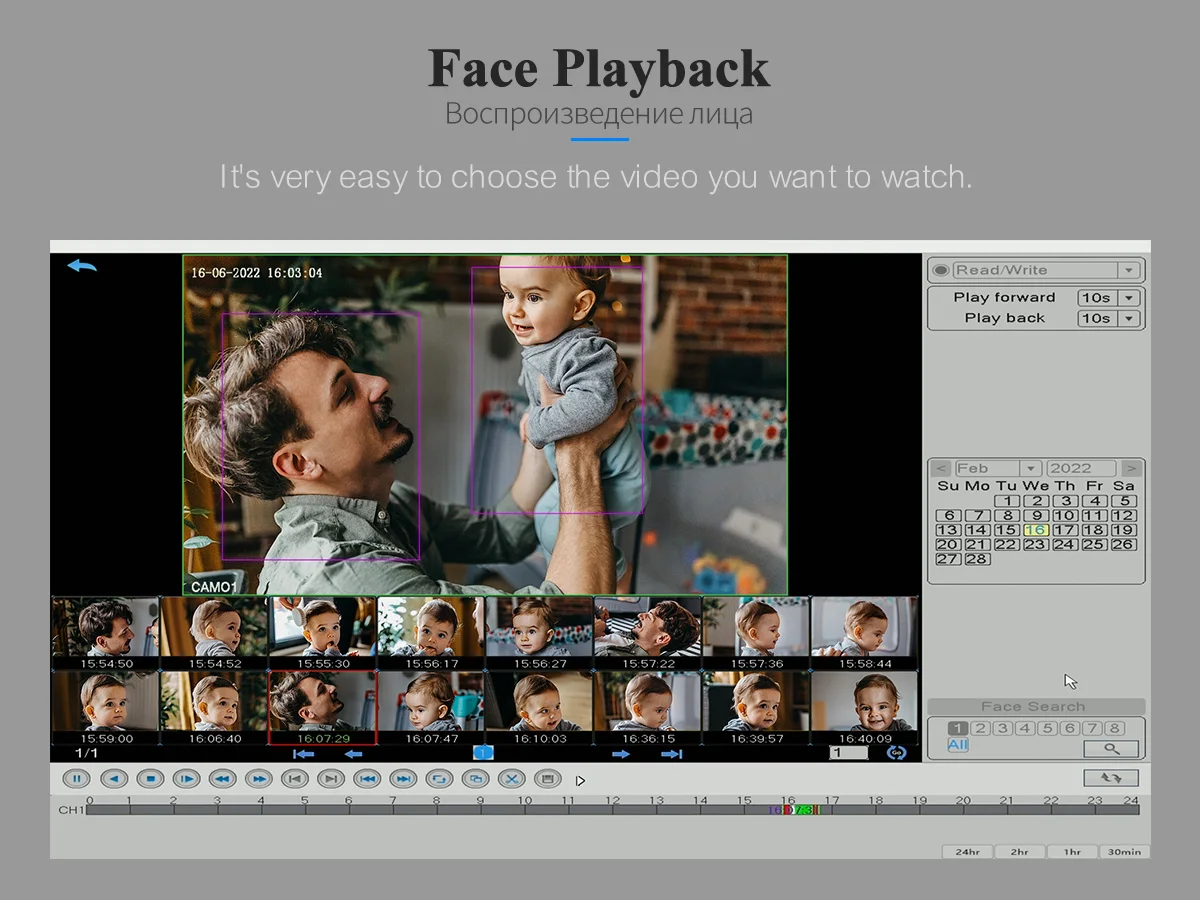

Face Playback

You can quickly find the information you want to see and find it accurately

Support Intelligent Humanoid Detection

Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.

H.265 CCTV System

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.

Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

Smart IR-Cut Full Color Night Vision

The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark; Night activating Color onece detecting movement.

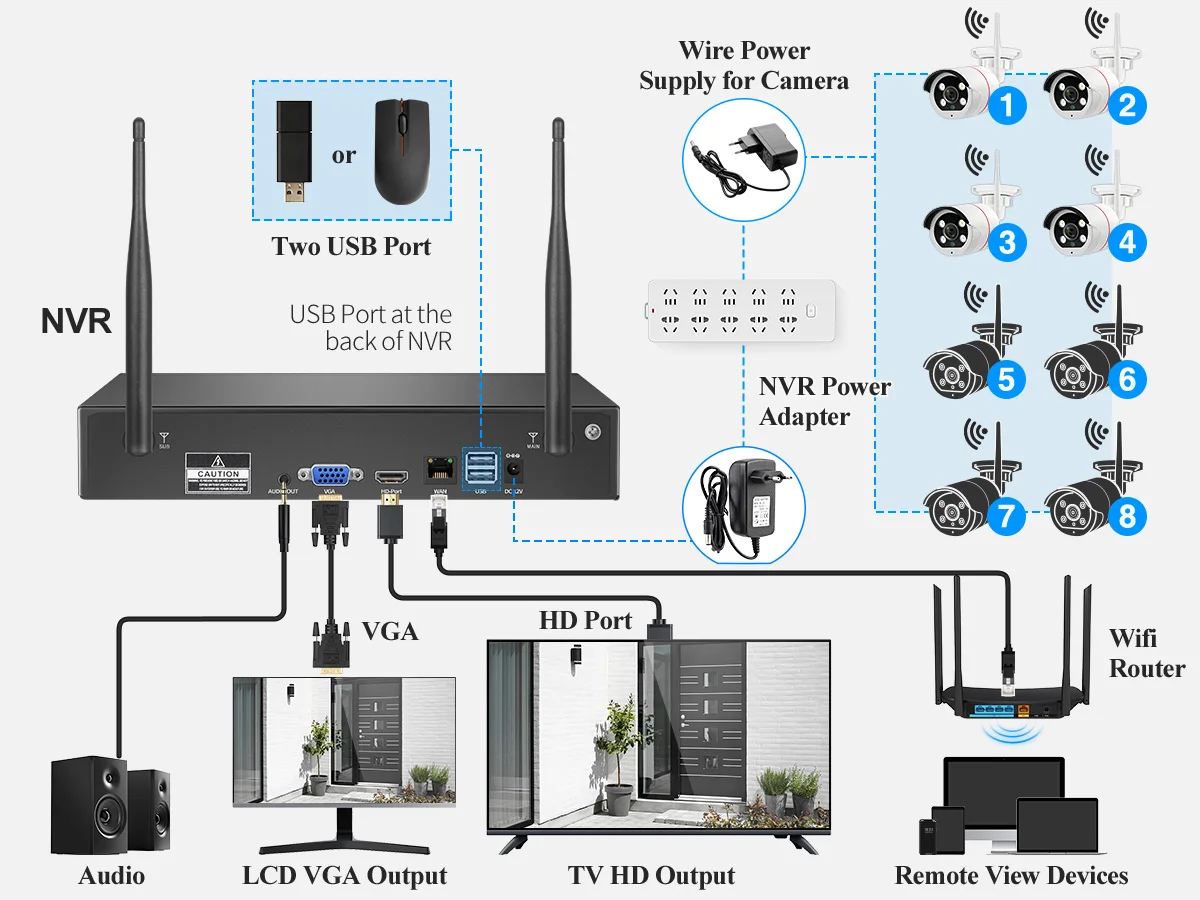

True Plug and Play,Easy Installation

Super easy installation and configurations. Real plug and play, no need of any professional skills,

you can totally do it yourself effortlessly and build your own surveillance system.

( 8 Channel NVR Design,support to connect up to 8pcs cameras,you can buy Techage wireless ip cameras to expand your cctv system.)

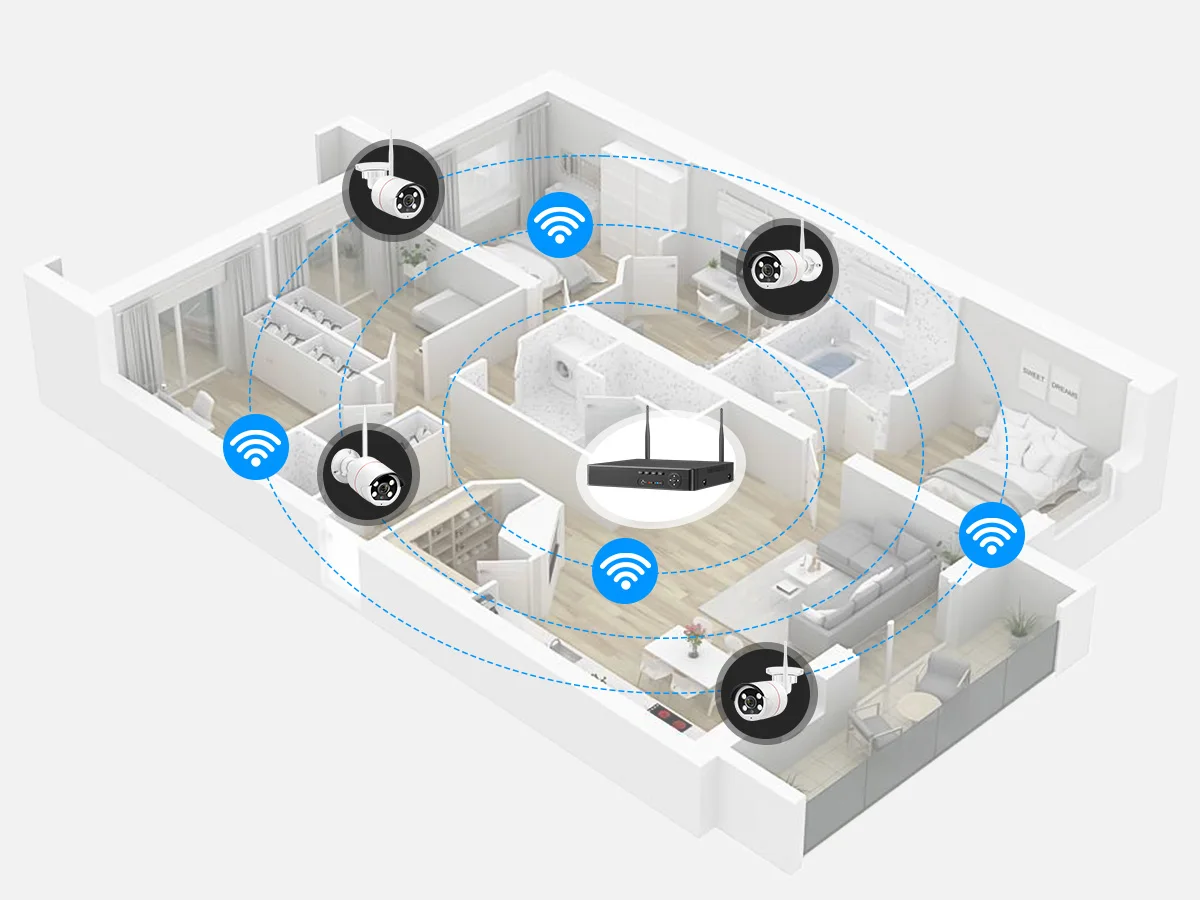

Strong wireless cascade technology

The latest WIFI cascading technology perfectly solves the problem of WIFI signal weakening and instability after long distances and through walls.

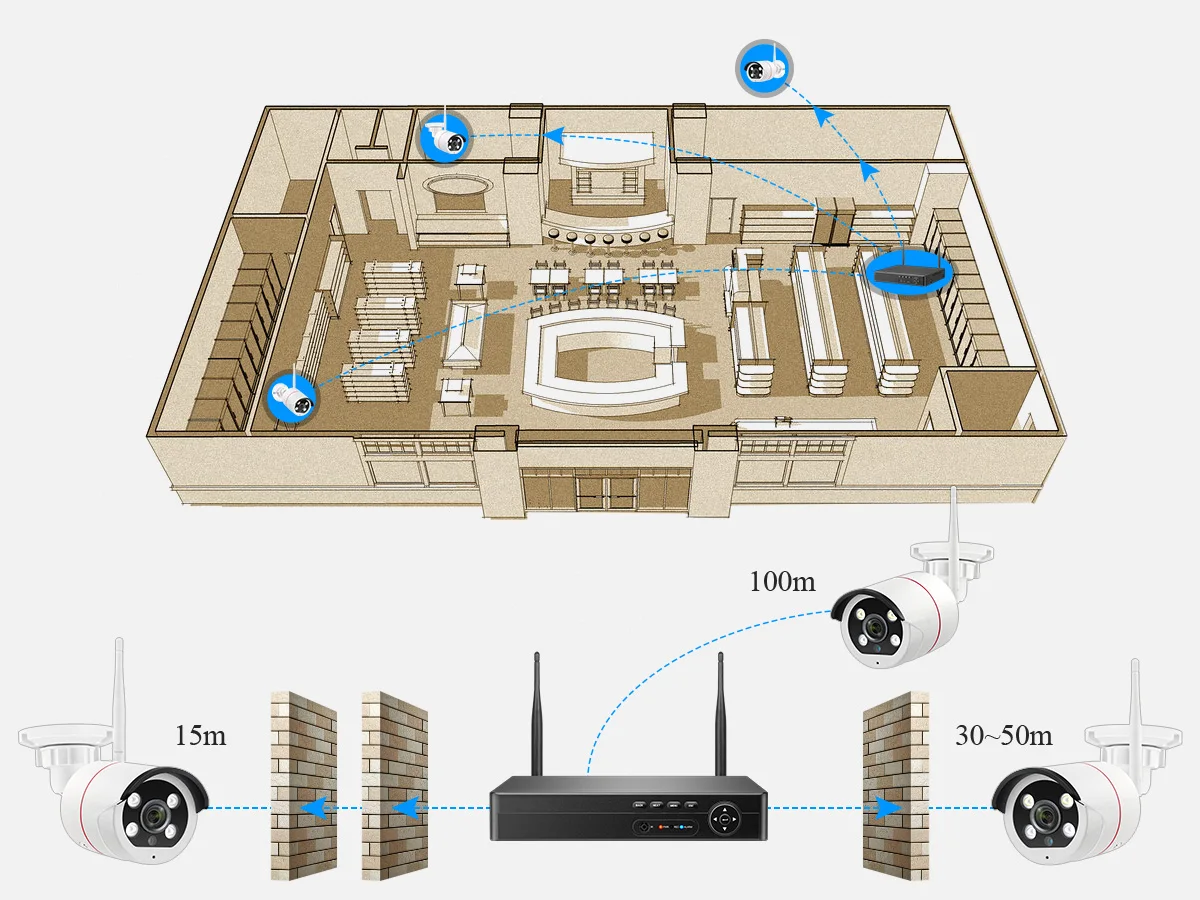

Wireless NVR WiFi Range

100 meters wireless transmission(no obstacle)

Built-in high power wireless router module, support 30-50 meters wireless transmission.

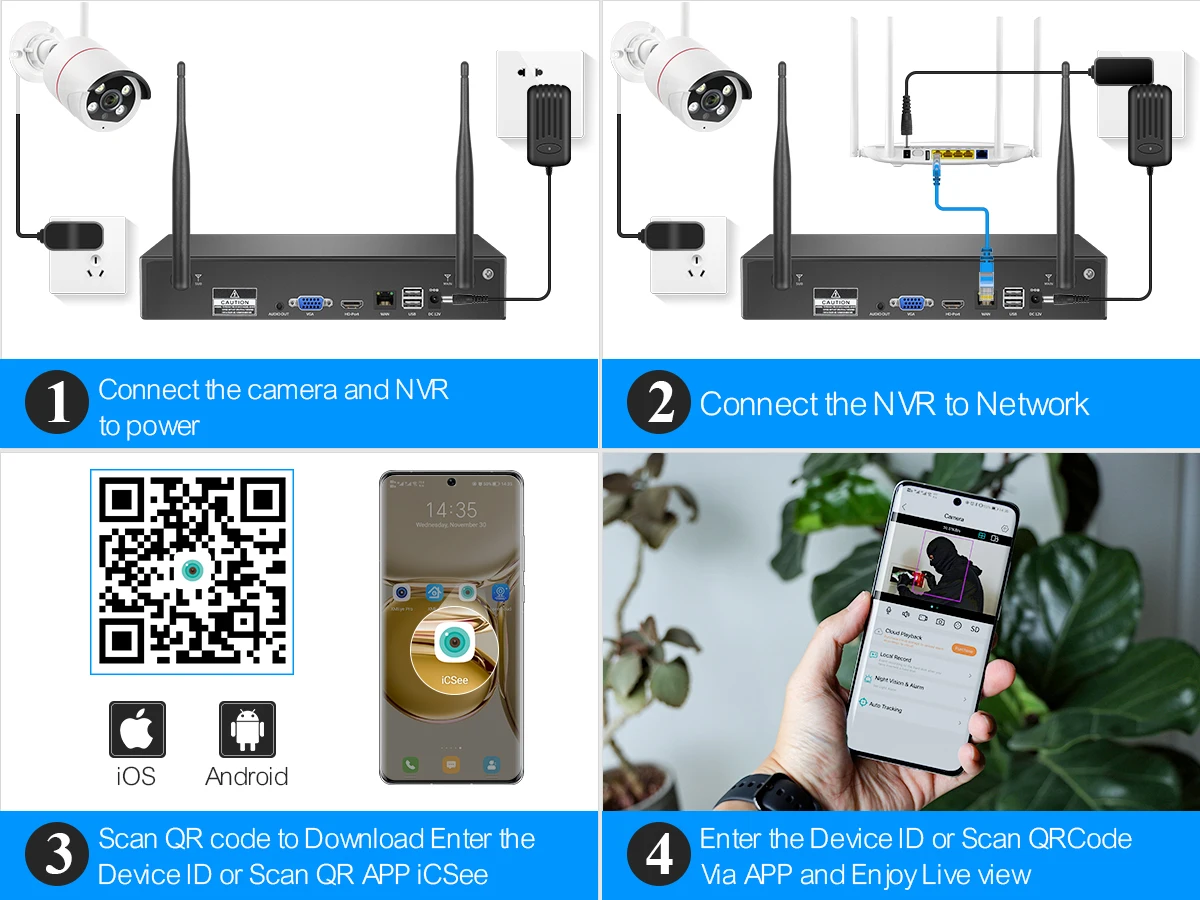

Mobile Phone Setting

Easy setting, just 4 steps for mobile phone viewing (Android and iPhone iOS)

IP66 Metal Waterproof Security Camera

Our camera is Metal Shell, all can suit for both outdoor and indoor usage

Video With Smart Playback

Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos

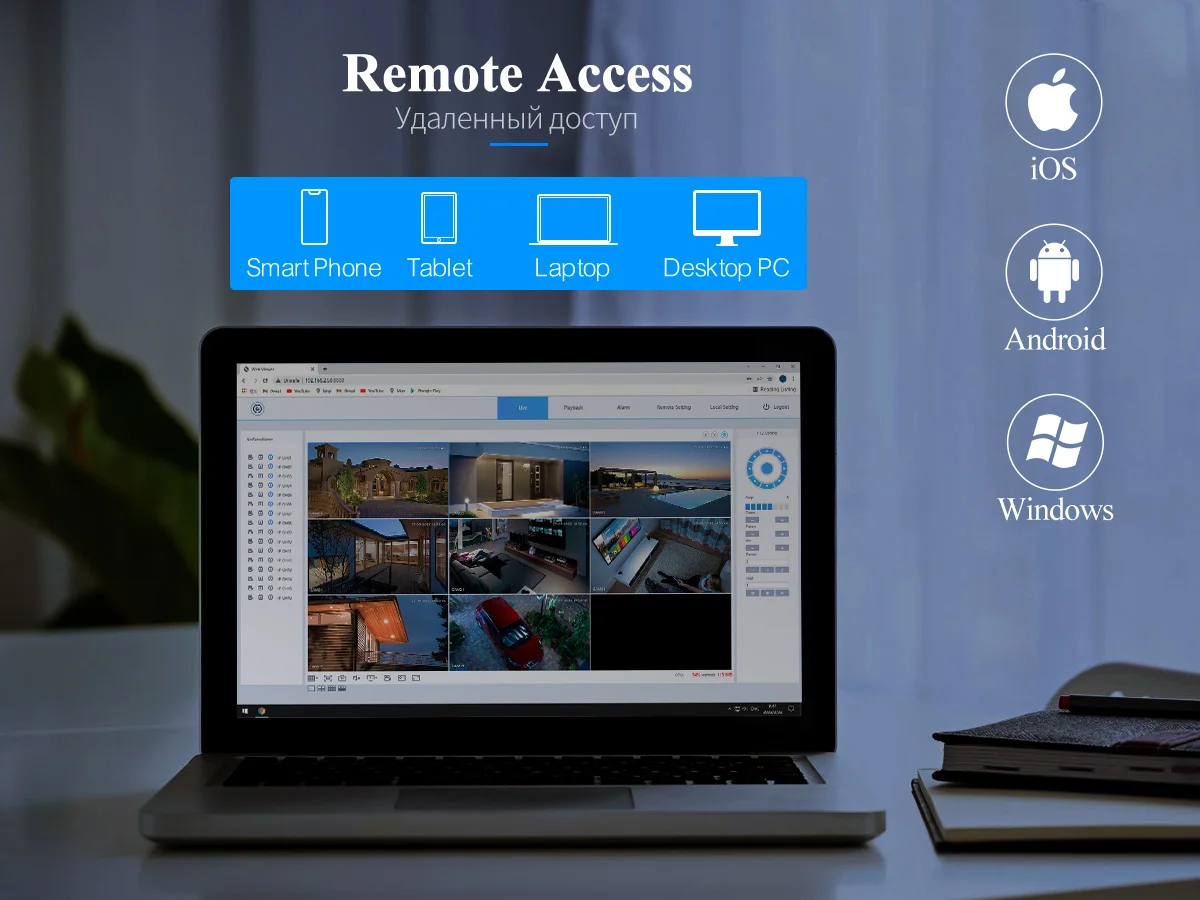

Remote Access Anytime, Anywhere

Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.

Model
Model Type:
WIFI Camera
Model No.
XM-608W-AI-50
System
System structure
Embedded RTOS design, dual-core 32-bit DSP GK7205V300, pure hard compression, watchdog
Video
Sensor
5 million 1/3 "CMOS sensor, color 0.01Lux@F1.2 , black and white 0.001Lux@F1.2
Video processing
H. 265+(compatible with H.265/H.264) encoding, dual code stream, AVI format; Bit stream 0.1M~6Mpbs adjustable
Image output
Main stream: 2880*1616@12fps,2560*1440@12fps; Subcode flow: 800*448@12fps
Shutter
1/50(1/60)to 1/10000 of a second
Noise reduction
2 d / 3 d noise reduction
Wide dynamic
Digital-wide dynamic
Lens
3.6mm hd lens
Night vision
IR-CUT,Infrared night vision, color filter automatically switch
light distance
Infrared 20m, white light 15m (2 white light, 2 infrared light)
Audio
Audio processing
G.711A Codec standard,two way audio,audio and video synchronization
Audio interface
-33DB high sensitive MIC,8 euro 1 watt high quality waterproof speaker
Network
Network interface
One RJ45 Ethernet port,10/100M auto-sensing,supports network protocols such as RTSP, FTP, DHCP, NTP, and UPnP
WIFI antenna interface
2.4g dual WIFI antenna
Alarm
Human detection, Face detection, smart AI alarm
APP push, voice alarm, video recording, capture pictures
Video
Video mode
Timing video, event video
Playback mode
Event playback, time playback
Other
Reliability
Comprehensive lightning protection,in line with national and international standards,7*24 hours 65℃ high temperature test is
stable and reliable
ONVIF
support
Cell phone monitoring
Mobile phone monitoring (iOS, Android)
power
DC12V/1A
Material
Metal Housing
Reset
Support one-button reset function
Work environment
Temperature
-20℃ to +55℃
Humidity
30% to 80% RH
Model
TS-6108BW
System
Operation
Embedded LINUX operating system
System resources
Multi-channel real-time video recording, multi-channel real-time playback, multi-channel multi-person network operation, USB
backup
Interface
Operation interface
16 bit true color graphical menu operation interface, supporting mouse operation
Screen display
1 / 2 / 4 / 6 / 8 / 9 screen
Vedio
Video access mode
8Channel 5MP
Image decoding
H.265AI/H.265+(compatible H.265/H.264)
Monitoring
Max:1080P
Playback
5M
Decoding
5M(1+1)/4M(2+2)/3M(3+3)/1080P(5+3)
Human face detection
Support (XM front-end camera)
Audio
Audio compression
G.711A
Voice intercom
Support, 3.5mm headphone hole
Video recording and playback
Video mode
Manual > Alarm > Dynamic Detection > Timing
Local playback
5M(1+1)/4M(2+2)/3M(3+3)/1080P(5+3)
Video query
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval
Record
Local hard disk, network, cloud storage
Backups
Network backup, USB mobile hard drive, USB burning, SATA burning
Port
Video output
1 channel HDMI HD output, 1 channel VGA output
Audio I / O
1 / 1 (3.5mm interface)
Network interface
1 RJ45 10m / 100M adaptive Ethernet port, 8-Channel WiFi
USB Port
2 USB2.0 Port
Hard disk
1 SATA interface (each supporting up to 14T)
Other
Power
DC52V/2.5A
Work environment
Temperature: 0 ℃ - + 55 ℃, Humidity: 10% - 90%
Company Profile
FAQ
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!

Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.

Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.

Q: What is your delivery time?Complete HD Camera system:
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.

Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.

Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!

Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
